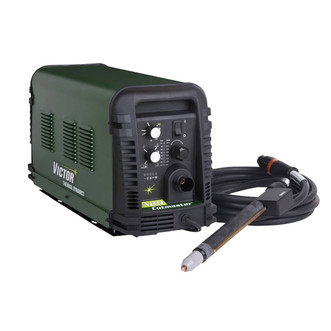

Thermal Dynamics Cutmaster A-Series Automated Plasma Cutting System 80 Amp

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

The A-Series includes the SL100® SV 1Torch® with standard ATC Quick Disconnect 25' (7.6 m). The 1Torch start technology eliminates the electronic interference that can occur with other designs. 1Torch provides quick, reliable starts and a strong pilot arc to pierce heavy plate. With auto-pilot restart, it can also cut expanded metal quickly and easily. With all the advantages of 1Torch and proven reliability, the automated A-Series delivers the best in productivity, precision and performance.

• A powerful 80% Duty Cycle to handle all-day production cutting in the toughest environments
• Light-weight, compact design and convenient mounting feet allow for easy mounting in any application
• Valve in torch design reduces cycle time between parts and increases productivity
• CNC Interface connection is located on the rear of the power supply offering "Start/Stop", "OK to MOVE" and divided arc voltage
• Full arc voltage is available using an internal terminal connection
• Software automatically detects the torch that is attached and switches between automation and manual modes
• Dedicated automation software improves cycle time and performance in many applications
• Mfr.'s 4-year power supply, 1-year torch warranty

Rated Output: 80 Amps
Output Range: 30-80 Amps @ 80% DC, 100 Amps Max., Adjustable
Production Piercing and Cutting Capacity: 1/2" (12 mm)
Maximum Piercing and Cutting Capacity: 3/4" (20 mm)
Maximum Edge Start: 1-1/4" (30 mm)
Input Volts: 208-230/460V, 1 ph, 50 Hz
Input Amps @ Max Output: 208V, 99 at 1 phase, 46 at 3 phase, 230V, 95 at 1 phase, 49 at 3 phase
Kilowatt Output: 12 kW
Duty Cycle: 80% @ 80 Amps, 100% @ 70 Amps
MAX OCV: 260 VDC
Gas Type: Air @ 75 psi (5.2 bar) @ 6.7cfm (189 lpm)
Dimensions: 13.5"H (343 mm) x 9.75"W (248 mm) x 26"L (660 mm)
Weight: 63 lbs. (28.6 kg) - Unit, Power Cable, (Torch and Leads)
Work Cable: 20' (6.1 m)
Control: CNC rear panel connector, Start/Stop and OK to Move
Input Power: Cable 10' (3 m) with plug (208/230V) 6' (2 m) without plug (400V)
Certifications: IP-23C, CSA, NTRL/C, CE, CCC

Includes power supply, automation torch with 1-3/8" dia. (35 mm) non-metallic mounting tube/32 pitch rack (detachable), pinch block assembly, CNC interface cable, spare parts kit, input power cable, work cable and clamp.
