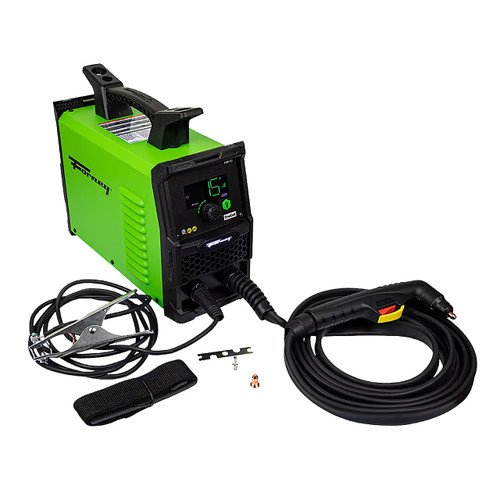

Forney X-Series TruCut Plasma Cutter, 120V

Description

TruCut™ is a compact, 120V plasma cutter built for DIY, farm and ranch, maintenance, and light fabrication work. With inverter technology and a 20A output max, it delivers clean cuts up to 1/4" and can sever up to 3/8". Drag Torch Technology allows the operator to rest the torch tip directly on the work surface for steadier, more accurate cutting. A built-in regulator and moisture separator maintain clean, consistent air to extend consumable life.

• TruSet™ automatically sets ideal output for clean, consistent cuts with minimal kerf.
• Pilot Arc Performance maintains arc through rust, paint, and expanded metal for continuous cutting and easier starts.
• Drag Torch Technology allows the operator to drag the tip directly on the workpiece for smooth, accurate cuts.
• Bright, easy-to-read interface for quick setup and clear visibility.
• Mfr.'s 3-Year machine warranty, 90-Day Torch warranty.

Applications: Auto Body, Farm and Ranch, HVAC, Plumbing, Contractor, Education
Processes: Plasma Arc Cutting (PAC), TruSet, Plasma Arc, Cutting (PAC)
Primary (Input) Volts: 120VAC
Phase: Single
Frequency: 50/60Hz
Maximum Output: 20A
Digital Display: Yes; bright, clear, easy to read
Built-In Regulator / Moisture Separator: Yes
Generator Compatible: Yes; 4,000W continuous output (no low-idle, 5% THD max)
Power Supply Type: Inverter technology
Air Requirements: 2.5CFM @ 90PSI
Duty Cycle: 35% @ 20A, 60% @ 16A, 100% @ 12A
Recommended Inlet Pressure: 60–100 PSI (4.1–6.9 bar)
Recommended Circuit Breaker: 120V - 20A time-delay (slow-blow) breaker minimum (30A for maximum performance)
Extension Cord Recommendations: 120V - 3 conductor #12 AWG or larger up to 25'.
Generator Requirements: 120V - Minimum 4,000W continuous output with no low-idle function (or low-idle off), 5% THD Max
Cutting Capacity: Thin sheet metal to 1/4" plate (sever cut up to 3/8")
Safety Certification: CSA
Size: 21.2"L x 6.6"W x 12.4"H
Weight: 17.3 lbs.

Includes
plasma torch
10' ground cable with clamp
nylon carry strap
15-20A plug adapter
set of consumables
handle
nylon carry strap
