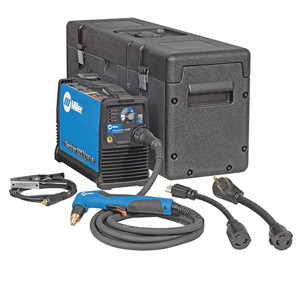

Miller Spectrum 375 X-TREME Plasma Cutter

SKU: M566435 907-529
Write a Review
$1,856.00
SKU:
M566435 907-529
Availability:
Ships direct from manufacturer. Lead times may vary.
Download-Spec-Sheet:
566435_SPEC

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers. For other product options, please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Auto-Line™ provides state-of-the-art flexibility to the end user. The circuitry automatically connects to 120 – 240 V, single-phase power, 50/60 Hz, without removing the covers to relink the power source. Auto-Refire™ automatically controls the pilot arc when cutting expanded metal or multiple pieces of metal. Complete cutting capability when powered by an engine-driven welder/generator with a 240V receptacle of 4 kW or more. XT30 torch with an ergonomic handle. LED indicators for power, pressure, cup and temperature. LVC™ provides peak performance power under variable conditions.

Mild Steel Cutting Capacity Rated
3/8" at 18 IPM
1/4" at 36 IPM
Maximum Sever cut of 5/8" cutting at 30 amps

Input Power
120 - 240V, 1-Phase, 50/60 Hz

Rated Output
240V - 30 A at 92 VDC, 35% duty cycle
120V (20A) - 27 A at 92 VDC, 20% duty cycle
120V (15A) - 20 A at 88 VDC, 35% duty cycle

Welding Amperage Range
14 - 30 Amps

Pressure Flow
5 SCFM (146 L/min) at 90 PSI MIN (621 KPa) 120 PSI MZX (828 kPa)

Tool weight with torch 19 lbs.

Includes
torch with 12' cable
heavy-duty work clamp with 12'flexible cable
10' power cord
MVP plugs
2 electrodes
2 tips
deflector
air fitting
X-CASE
shoulder strap
