Hobart AirForce 27i Plasma Cutter DISCONTINUED

SKU: M563235 500-565
Write a Review
M563235 500-565

Frequently Bought Together

Please choose options for all selected products


This product has been discontinued. Midwest can source a wide range of items not listed on our web site or in our catalog. Please call customer service for details at (800) 831-5904.

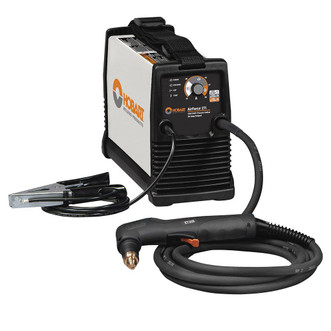

The AirForce™ 27i is an economical plasma cutting system for all conductive metals. Inverter-based design and reliable technology pack a lot of performance into a very portable package. This power source adapts to your work site by operating from either 120V or 240V power through standard household outlet using the Multi-Voltage Plug (MVP). Compared to the complexities of an oxy fuel cutting torch system, plasma cutting is easy. It cuts faster than oxy fuel, offers more precise cut, thinner kerf, less slag to clean up, has a smaller heat-affected zone for less warping, requires no gas pressure settings or flame tuning needed and no preheating of metal prior to cutting.

  • Complete cutting capability when powered by an engine-driven welder with a 240V generator power outletof 6 kW or more
  • XT30R torch is designed for increased comfort, more efficient cooling and longer lasting cutting tips
  • MVP allows you to connect to common 120 or 240V power receptacles without the use of any tools
  • Post-flow Air Cooling cools the torch and tip after cutting, extending life of replaceable tip and electrode
  • Fan-On-Demand runs only when needed reducing dust/debris pulled into unit
  • Wind Tunnel Technology prevents abrasive dust and particles from damaging internal components
  • Thermal Overload Protection built to withstand tough working environments
  • Line Voltage Compensation (LVC) provides peak performance power under variable input voltage conditions (±15%) for steady and cleaner ending cuts
  • Power Factor Correction expands operator’s work area via extension cords while minimizing nuisance trips caused by voltage drops
  • Mfr.'s 5/3/1 industrial warranty

120V, 20 Amp, 88 VDC
Max. Open-Circuit Voltage:  400V
Rated Output at 35% Duty Cycle 240V - 27 Amp, 92 VDC, 120V - 20 Amp, 88 VDC
Amps Input at Rated Output 60 Hz: 120V (15 A) 20.6, 120V (20 A), 28.8, 240V 13.9
Plasma Gas Flow/Pressure: 3.0 CFM (85 L/min) at 90-120 PSI (621–827 kPA) recommended
Dimensions 8-1/4"W x 14-1/4"D x 11-1/4"H
Weight: 27.8  lbs. (with torch)

Includes XT30R torch with 12' lead and consumables, heavy-duty work clamp with cable, 10' power cord with 120/240 VAC and 20 A MVP plug.
