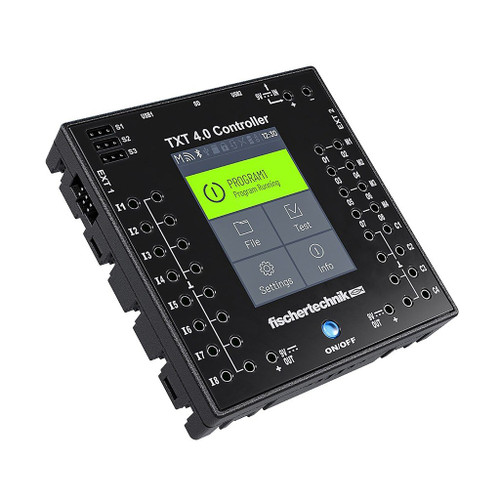

Fischertechnik TXT 4.0 Controller

SKU: M406220 560166
Write a Review
M406220 560166

Frequently Bought Together

Please choose options for all selected products


The TXT 4.0 controller offers plenty of features with its 512 MB RAM and 4 GB eMMC memory, the three servo outputs and a capacitive touch display that supports swipe gestures. The improved WLAN and Bluetooth module offers the right wireless interface for numerous applications. Another interface is the USB host port, to which, for example, the fischertechnik USB camera or USB sticks can be connected. Up to 8 additional controllers can be connected to one controller as extensions. The flat housing allows the controller to be perfectly integrated into the models. To always be up to date, firmware updates are automatically downloaded via the cloud, preserving custom programs. With the software ROBO Pro Coding can be programmed both graphically and with Python!

ROBO Pro Coding is operating system independent and can also be used with mobile devices (Android / iOS). With an additional app (Android / iOS), the TXT 4.0 controller can also be controlled via voice recognition.

Processor: Arm® dual Cortex®-A7 650 MHz + Cortex®-M4
Memory capacity: 512 MB DDR3 RAM, 4 GB eMMC
Memory expansion: Micro SD card slot
Color touch display: 2.4“, 320x240 pixels, capacitive, allows swipe gestures
Flat design - dimensions: 90x90x17,5mm
8 universal inputs: digital/analog 0-9VDC, analog 0-5 kΩ
4 fast counting inputs: digital, frequency up to 1kHz
3 servo outputs 5V (max. 2A), short-circuit proof
4 motor outputs 9V/250mA (max. 1 A): Speed infinitely variable, short-circuit proof, alternatively 8 single outputs e.g. for LEDs
Combined Bluetooth / WLAN radio module: Bluetooth 5.0 (BR, LE & EDR), WLAN dual band 2.4 GHz and 5 GHz 802.11 a/b/g/n / USB 2.0 client: Mini USB socket for connection to PC
USB host interface: USB-A socket e.g. for fischertechnik USB camera or USB sticks
Camera interface: via USB host, Linux camera driver integrated in operating system
Integrated loudspeaker for playing sounds
2x pin header 6-pin: For extension of inputs and outputs as well as I²C interface
Linux based open source operating system, firmware update via cloud, USB stick, micro SD card
Programming with ROBO Pro Coding (graphical and Python), C/C++ compiler (not included) - further programming possibilities via REST interface
Control also possible via voice recognition app (Android / iOS)
Available output voltages: 9V, 5V and 3.3V
Power supply: 9VDC socket 3.45 mm or fischertechnik sockets 2.5 mm

Requires Accu Set or Power Set, sold separately.
