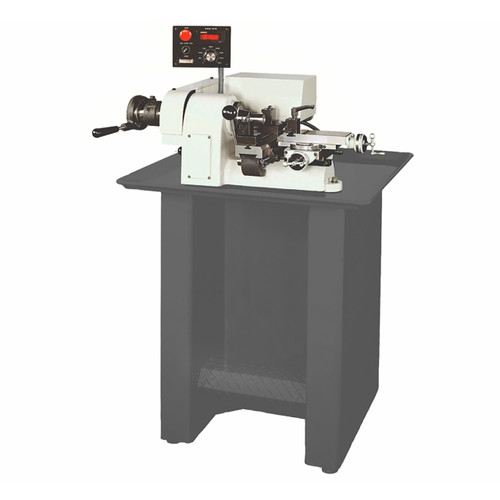

Clausing 9" Metal Lathe, 230V

Description

A finishing lathe with a compact design for superior finishes. Inverter driven variable speed for smooth vibration free and extreme quite operation. Powerful 1HP 50-4,000 RPM spindle motor with current vector inverter drive, increases low end torque providing desired speed on demand. The spindle is mounted on high precision preload angular contact ball bearings eliminating radial end play.

• Flat panel LED displays shows spindle rpm
• Quick change spindle speeds
• Circular accuracy to 50 millionths of an inch
• Fast lever collet chucking with one single movement
• Solid hardened and ground alloy tool steel bed
• Mfr.'s 1-year limited warranty

Machine Style: Toolroom Lathe
Spindle Speed Control: Inverter Variable Speed
Spindle: 1 HP
With Chuck: 6"
With Expanding Collets: 3"
With Round 5C Collets: 1-1/16"
With Hexagon 5C Collets: 7/8"
With Square 5C Collets: 3/4"
With Step Chuck: 1-1/16" to 6"
Spindle Nose Diameter: 2.18"
Spindle Nose I.D. / O.D.: 5C (10°)/4° Taper
Spindle Speeds: 50-4,000 RPM
Hole Through Spindle: 1-1/4"
Bar Stock Diameter 5C Collet: 1-1/16"
Distance between Centers: No Tailstock
Swing Over Bed: 9"
Compound Slide Travel: X=4.48", Z=5.5"
Voltage Required: 230/460
Phase: 3
Size: 36"L x 36"W x 55"H
Weight: 820 lbs.
