Powermatic 2014B 14" VS Lathe, 1HP, 230V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

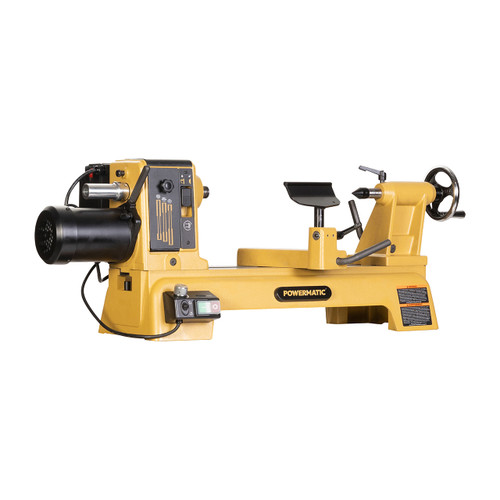

PM2014B is a 14" × 20" variable speed woodworking lathe, built for professional woodturners and shop users who demand performance. A 1HP inverter-driven VFD motor delivers smooth 3-phase output from a standard 115V single-phase power source. Three selectable speed settings, low (15-900 RPM), medium (30-1,800 RPM), and high (60-3,600 RPM), give turners precise, intuitive control from aggressive roughing passes to fine finish turning. The cast iron bed, legs, headstock, and tailstock absorb vibration, resist flex, and deliver the rigid, stable platform that precision woodturning demands. The sliding headstock repositions to the end of the bed for outboard turning.

• 14" swing over the bed and 20 inches between centers handle bowls, spindles, and a wide range of turning projects.
• New hardened steel top rod tool rest delivers smoother tool movement and superior wear resistance.
• Magnetic control box repositions anywhere on the lathe bed.
• 24-position positive locking spindle indexing supports repeatable, accurate layout work.
• Mfr.'s 5-year warranty.

Digital Readout: Yes
Distance Between Centers: 19.25"
Headstock Movement: Sliding
Input Power: 115V, 1 Phase
Motor HP: 1
Motor Phase: 3
Motor Voltage: 230
Motor Speed: 1,720 RPM
Number of Indexing Positions: 24
Quill Taper: MT2
Quill Travel: 4-1/2"
Range of Inch Threads (TPI): 8
Range of Spindle Speeds (RPM): 15-900 (low), 30-1800 (med.), 60-3600 RPM (high)
Recommended Circuit Size Amp: 15
Swing Over Bed: 14.25"
Size: 52"L x 24"W x 18"H
Weight: 187 lbs.

Includes
Knockout rod
Face plate
Tool rest
Spur center
Cone live center
Tool caddy
Manual
