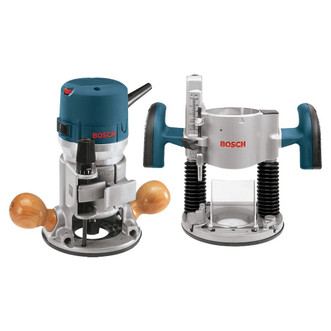

Bosch 2-1/4 HP Plunge Router

SKU: M260232 1617EVSPK
Write a Review
M260232 1617EVSPK

Frequently Bought Together

Please choose options for all selected products


Provides versatility for a broad range of applications from precise plunging of bit into work-piece to edge forming, laminate trimming, dovetails and other joinery.

  • Micro-fine bit depth adjustment
  • Quick clamp system on both bases for tool-free conversion
  • Right or left switch and cord location
  • Variable speed dial matches speed to workpiece and task
  • Exclusive precision centering design centers bit precisely
  • Wide base and 2" sub base openings accepts large bits
  • Constant Response™ circuitry maintains constant speed under load and protects against overload
  • Double insulated
  • UL listed
  • OSHA approved

120V, 12 amps, 2.25 HP, 8,000-25,000 RPM, 1/4", 3/8", 1/2", 8mm collet capacity.
Plunge depth: fixed base 1-7/8", plunge base 2-1/4".
Tool size: fixed base 6" dia., plunge base 6-11/16" dia.
Tool weight 10 lbs.

Includes collet chucks (1/4", 1/2"), 3 wrenches, fixed base, plunge base, chip shields, table-mounting screws and molded case.
