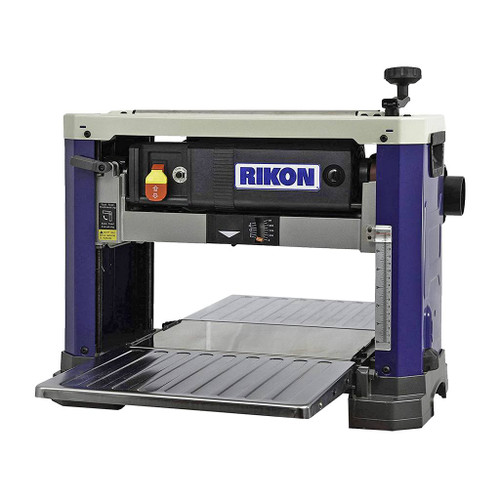

Rikon 13" Portable Planer with Helical Cutterhead

SKU: M694158 25-135H
Write a Review
$892.00
SKU:
M694158 25-135H
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
385
prop65:
sash:
NEW!
sashcolor:
#245E98

Frequently Bought Together

Please choose options for all selected products

Description

Portable planer features a 6-row helical-style cutter head and 26 HSS insert cutters. Each indexable knife insert is precision sharpened on 2 edges and can be easily changed/rotated if damaged or worn – just loosen, rotate, and retighten! The alternating cutter pattern in the cutter head is super-efficient, and with a 2-speed feed rate, produces a smooth cut surface. Planer features a threaded 4-post threaded housing for extra head stability when running, side handle for quick table height adjustments, repeat cut setting lever, large fold-up extension tables, flat top with rollers for stock returning and side carry handles.

  • Powerful 15 Amp motor
  • Helical style cutterhead
  • 2-speed feed rate
  • All steel construction
  • Easy blade access
  • Infeed/outfeed table extensions
  • Mfr.'s 5-year warranty

Volts: 115V, 60 Hz
Amps: 15
Maximum Planer Width: 13"
Maximum Depth of Cut: 1/16" @ 6" to 13"W, 1/8" within 6" wide
Cutterhead Speed: 10,000 RPM
Number of HSS Knives: 26
Cutterhead Diameter: 2"
Feed Speed: 16 & 26 SF/MIN
Dust Port Diameter: 4" or 2-1/2"
Overall Size: 19-1/4"H x 22"W x 34-1/4"H
Base Size: 22" x 13-3/8"
Weight: 68 lbs.

Includes dust hood and chute, star T25 screwdriver, dust hood knobs, dust hose adapter 4" to 2-1/2", on/off switch safety key lock, hex wrench, handle screw and height adjustment handwheel.
