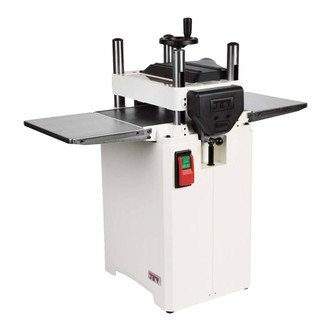

JET 15" Helical Cutterhead Planer, JWP-15BHH

SKU: M485683 JWP-15BHH
Write a Review
$4,078.00
SKU:
M485683 JWP-15BHH
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65-text:
true
prop65-text-3:
lead, titanium dioxide ^^ lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

The JET 15" helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor combined with a helical cutterhead housing 48 staggered carbide quick-change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gearbox allows for quick and easy feed rate adjustments while removing up to 1/8-inch material with each pass for a smooth finish. A large Precision cast-iron table and infeed/outfeed tables make this planer a beautiful addition to the shop.

  • Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Helical Cutterhead houses 48 staggered carbide knives that are engineered to align themselves without any adjustment for a superior finish and quieter cut
  • Heavy-duty precision ground cast iron table and four-post design provide maximum control and support when passing boards through planer.
  • Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
  • Dual infeed speed control for 16 fpm or 20 fpm maximizes cut efficiency
  • Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
  • Large cast iron precision ground infeed/outfeed tables provide support for large workpieces
  • Large handwheel with positive gear drive easily moves the head to the desired board thickness
  • Magnetic Switch with green safety light illuminates when powered
  • 4" Dust Port hooks up to dust management system and helps keep the shop clean
  • Mfr. 's 5-year warranty

Style: Floorstanding Model
Type of Cutterhead: Helical Head
Cutterhead Speed: 5,200 RPM
Cutterhead Diameter: 2-5/8" (68mm)
Cuts Per Minute: Continuous
Number of Knives: 48
Maximum Depth of Cut: 1/8"
Maximum Full-Width Depth of Cut: 1/8"
Maximum Planing Width: 15"
Maximum Planing Thickness: 6"
Minimum Planing Length: 5.6"
Feed Rate: 16 and 20 FPM
Number of Speeds: 2
Table Size: 15" x 49.2" with extensions
Dust Port Outside Diameter: 4" (102mm)
Motor Power: 3 HP
Motor Phase: 1
Motor Voltage: 230
Motor Amps: 15

Includes T30 screwdriver, star point screwdrivers, cast iron extension tables and knife inserts.
