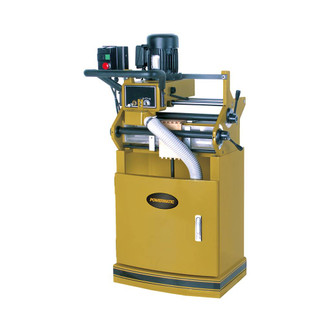

Powermatic DT45 Dovetailer, 1HP 1PH 115/230V, Manual Clamping

SKU: W656660 1791304
Write a Review
W656660 1791304
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Gives quality to the most popular joints of drawer construction. Produce cleanly cut, high-quality dovetails that will enhance projects. Complete with 1HP 230V 1 phase motor, manual eccentric clamping, magnetic starter, carbide tipped cutter, and a 4-sided template that produces dovetails on 1", 9/16", 2", and 3-1/8" centerlines. The use of different dovetail centerlines gives a unique custom appearance.

  • Eccentric spindle collet for resharpened cutters
  • Spring loaded carriage makes for smooth, effortless dovetail cutting
  • Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
  • Extra large soft grip handle provides positive control and comfort
  • The precision carriage bearings are sealed on both ends to eliminate dust buildup
  • Visual stylus and template aid in guiding the carriage
  • Material stops provide convenient positioning of the workpiece
  • Cast iron and steel construction for added stability and durability
  • Mfr.'s 5-year warranty

Minimum Work Piece Size: 7-7/8"L x 2-3/8"L
Maximum Work Piece Size: 31" x 11"
Minimum Dovetail Height: 3/16"
Maximum Dovetail Height: 3/4"
Minimum Front Thickness: 9/32"
Maximum Front Thickness: 1-3/4"
Minimum Side Thickness: 9/32"
Maximum Side Thickness: 1-3/16"
Number of Spindles: 1
Spindle Speed: 18,500 RPM
Table Height: 35"
Motor (TEFC): 1HP, 1Ph, 230V
Dust Colletion Port: 2-1/2"
Dust Collection CFM Required: 500
Overall Dimensions: 33"W x 61"H x 33"L
Shipping Weight: 447 lbs.
