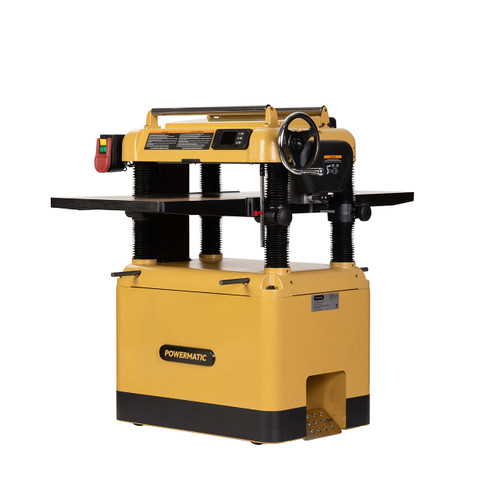

Powermatic 209BHH 20" Helical Head Planer, 5HP, 1PH, 230V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

20" stationary planer designed for woodworking shops that require industrial durability and precision in a versatile floor-standing format. Powered by a 5HP, 230V, 1-phase motor, the 209BHH surfaces hardwoods and softwoods consistently across its full 20" cutting width, with a maximum board thickness capacity of 8". Its 4-row helical cutterhead carries 68 four-sided carbide inserts running at 5,200 RPM, producing a smooth, professional surface finish with significantly reduced noise and extended insert life compared to straight-knife designs.

• 4-row helical cutterhead delivers a smooth finish, operates more quietly, and outlasts straight-knife heads.
• Digital readout displays exact board thickness in real time, enabling precise, repeatable settings that hold across operators and multiple passes.
• Solid cast iron infeed and outfeed tables resist flex and damp vibration, keeping long boards supported and the cutting surface consistent from end to end.
• Selectable 16 and 28 FPM feed rates let operators choose between a refined finish pass and aggressive stock removal without any tooling changes.
• Upgraded caster locking and braking system provides rolling mobility for repositioning while securing the machine firmly in place during cuts.
• Mfr.'s 5-year warranty.

Type of Cutterhead: Helical Head
Cutterhead Diameter: 3-1/4"
Cutterhead Speed (RPM): 5,200 RPM
Digital Readout: Yes
Dust Port Outside Diameter: 4"
Feed Rate: 16/28 FPM
Input Power: 230V, 1 Phase
Knife Size: 0.59" x 0.59" x 0.10"
Capacity: 20"W x 86"D
Maximum Full Width Depth of Cut: 3/32"
Min. Planning Length: 8"
Helical Cutterhead: 4 Rows, 68 Four-Sided Inserts
Motor Amps: 20
Motor HP: 5
Motor Phase: 1
Number of Knives: 68
Number of Speeds: 2
Prewired Voltage: 230
Recommended Circuit Size Amp: 40
Required CFM: 900
Style Type: Floor Standing
Table Height: Manually Adjusted
Table Material: Cast Iron
Main Table Size: 21-1/2" x 20"
Table Size: 51-1/2" x 33-1/2"
Overall Size: 51-1/2" x 37-3/8" x 43-3/8"
Weight: 606 lbs.

Includes
Dust hood
2 Cast iron extension tables
Handwheel
Handle
4 Hex wrenches
2 Open-end wrenches
3 Bags of fasteners
Owner’s manual
Warranty card
Screwdriver
2 T25 Torx Screwdriver
Set of 10 Knife Inserts and screws
