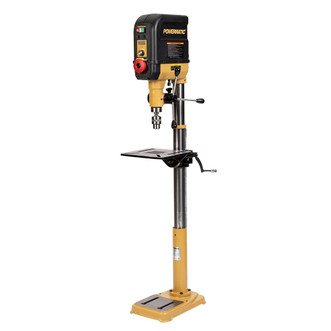

Powermatic 15" VS Drill Press, 120V

SKU: M656541 PM1-33
Write a Review
M656541 PM1-33

Frequently Bought Together

Please choose options for all selected products


Gear-driven spindle ensures consistent torque throughout operational range and minimizes inertia. Large LED digital read out offers real-time RPM feedback. Equipped with cross hairs to pinpoint exactly where the bit meets the workpiece.

  • Electronic variable speed from 250-3000 RPM
  • Extended quill travel to handle larger projects with ease

Motor: Brushed DC
Horsepower: 3/4
Phase: Single
Voltage: 120
Cycle: 60Hz
Listed FLA: 11.6
Laser: Yes
Work lamp: LED
Swing: 15"
Chuck style and shank capacity: Keyed / MT2-JT3, 5/8"
Quill travel: 5"
Scale display: 4" (spindle travel per one revolution of handle)
Depth setting: 3.7"
Quill diameter: 2.04"
Speed range (RPM): 250 - 3000
Maximum spindle to table: 18.5"
Minimum spindle to table: 1.77"
Maximum chuck to table: 11.02"
Maximum spindle to base: 22.83"
Maximum chuck to base: 18.464"
Readout: Digital
Speed Selection: Dial
Table size: 12.59" x 11.614"
Table tilt: 0 to 90° L and R
Table rotation around column: 360°
Table insert: 3.7" x 3.9"
Base size: 17.9" x 11.74" x 2.28"
Column diameter: 2.87"
Head, table, base: cast iron
Column: steel
Size: 14.17" x 23.22" x 70.07"
Weight: 164 lbs.
