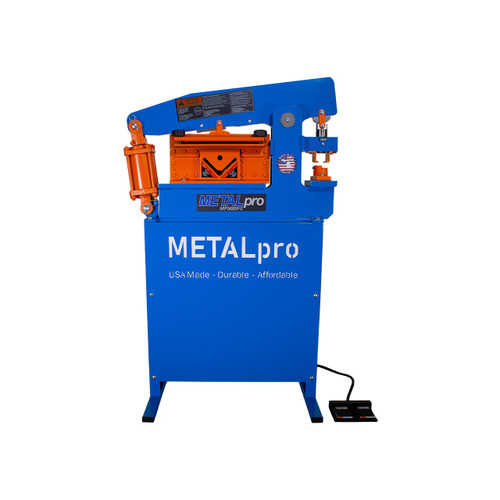

MetalPro 50-Ton Ironworker, 110V

Description

This MetalPro 50-Ton Ironworker is a lower cost alternative that provides more fabricating capabilities per dollar spend, with the same speed and accuracy. Comes complete with 2" die holder, stripper, and punch retaining nut. Outboard punch station delivers 50 tons at the punch and can be used with many notchers, custom shape punching, and forming operations. Punch ram and retaining nut are machined and heat treated for longevity. All wear parts and blades made from heat treated, high grade tool steel. Large 11" x 16" power cavity delivers 28 tons at the 3-in-1 shear which handles flat bar, round, square, and angles with one quick set up.

• One year warranty
• Guarding complies with ANSI B11-8 standards
• Meets American National Safety Standards for ironworkers
• Made in USA

Specifications: Rated on 65,000 PSI Tensile

Speed
Strokes per minute: approximately 6-8
Motor: 110V AC single phase, 1-1/2 HP
Capacity: 50 tons
Throat Depth: 3-3/4"
Punch: 50 ton max. capacity

Shear
Flat bar: 1/4"x 12" and 3/8" x 8"
Angle: 1/4" x 4" x 4"
Rod: 3/4"
Square: 5/8"
Hydraulics: 2,900 PSI
Oil capacity: 1.5 US gallons

Overall size: 41"L x25"W x 66"H
Weight: 650 lbs.

Includes
die holder
shear
foot switch

Notcher, picket tool, custom tooling, sold separately. All other accessories, sold separately.
