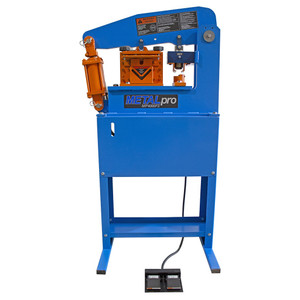

MetalPro 45-Ton Ironworker

Description

A Must for Industrial Arts Shops

MetalPro   Perform jobs that machines costing 4x as much can do just as fast and accurately. All-in-1 "Fabrication Shop" performs punching, shearing, notching, bending, forming and pressing work. Makes quick, accurate work of fabrication projects since it performs all of the operations to produce the components needed. Easily handles a wide variety of professional, industrial and farm production jobs.

• Plugs into standard 110V, 20A outlet
• Power cavity w/3-in-1 shear
• Delivers versatility w/the base machine & optional accessories
• 2" die holder, punch retaining nut & stripper
• 65,000 PSI tensile strength rated
• Meets ANSI Standard B11-5, UL approved
• Meets American national safety standards for Ironworkers

110 V, 1-1/2 HP, 6-8 Speed (spm), 45 Ton Capacity. 3-3/4" Throat Depth, 2" Max. Punch.
Notcher capacity 1-3/4" x 2" x 1/4".
Pipe notcher (Schedule 40) 1/2", 3/4", 1", 1-1/4", 1-1/2", 2".
Shear: rod 3/4", square 5/8".
Flat bar 3/8" x 6" & 1/4" x 8", angle 1/4" x 4" x 4".
Brake: 12"W x 1/4" thickness.
Hydraulics: 2,500 psi.
Size: 24"W x 37"L x 55-1/4"H.
Weight 550 lbs.
