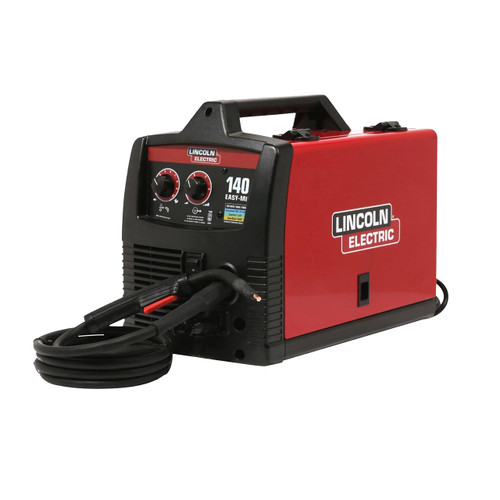

Lincoln WELD-PAK Easy MIG 140 Welder, 120V

Description

With its simple 2-knob controls and lightweight wire drive system, this compact welder is easy to use. The user-friendly interface makes dialing in easier and yields a smooth arc with minimal splatter. Requiring a common 120V input power, it can be used almost anywhere.

• Plug in anywhere 120V input power is available.
• Weld up to 140 Amps and a maximum thickness of 5/16".
• Simple 2-knob control for wire speed and voltage.
• Best for DIY projects, hobbyists, home repairs and more.
• Fully adjustable drive system reduces the chance of wire tangling and crushing.
• Brass-to-brass gun connection enhances conductivity.
• Mfr.'s 3-year warranty.

Processes: Mig, Flux-Cored
Input Voltage: 110/115/120V
Input Current: 20A
Input Hertz: 60
Input Phase: 1
Mode Icon: CV
Output Range: 30-140A
Polarity: DC
Machines Maximum Weldable Thickness: 5/16"
Machines Minimum Weldable Thickness: 24 ga.
Welding Gun Cable Assembly: 10'
Work Cable Length: 10'
Number of driven rolls: 1
Feeder type: Portable
Input AC Voltage: 120
Maximum Wire Thickness: .035"
Minimum Wire Thickness: .025"
Wire Feed Duty Cycle: 20%
Size: 13.7" x 10.15" x 17.9"
Weight: 50 lbs.

Includes
Magnum® 100L Gun and 10' Cable Assembly
3 Contact Tips, .025"
3 Contact Tips, .035"
Gasless Nozzle
Gas Nozzle
Spindle Adapter for 8" dia. spools
Drive Roll for .025" - .035" Wire
Shield Gas Apparatus
Sample Spool of SuperArc®
Sample Spool of NR®-211-MP
Work Clamp with 10' Cable
How to MIG Weld DVD
Instruction Manual
Flux-Cored/MIG Wire Drive Roll .025" - .035"

Spool gun, sold separately.
