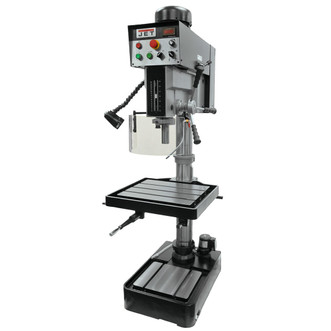

JET 20" Electronic VS Drill Press

SKU: M486062 JDP-20EVS
Write a Review
$6,702.00
SKU:
M486062 JDP-20EVS
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65-text:
true
prop65-text-3:
lead, cadmium ^^ lead, cadmium, phthalates
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at [email protected].

JET Electronic Variable Speed Drill Press offers spindle speed rates between 65 and 2,000 RPM for a wide variety of applications. Designed to permit continuous speed adjustment - even during operation. Emergency stop and a heavy-duty casted head are but a few of the features JET includes to enhance overall use and accuracy.

  • Heavy-duty steel column for increased precision and rigidity
  • Heavy-duty casted head for more accuracy and rigidity
  • Large precision ground t-slot production table for easy set ups
  • Latest AC inverter variable speed technology
  • Spindle is supported by high quality ball bearings
  • CSA/CUS certified
  • LED machine lamp
  • Spindle guard
  • Emergency stop
  • Spindle is supported by high quality ball bearings
  • Variable spindle speeds from 65 - 2,000 rpm's
  • High torque at all speeds both forward and reverse
  • Continuous speed adjustment while in operation
  • Front mounted LED spindle rpm readout
  • Forward and reverse for tapping
  • Front mounted positive control depth stop
  • Large hand grips designed with the users comfort in mind

Style: Variable Speed
Drills To Center Of Circle: 20"
Drilling Capacity Cast Iron: 1-1/2"
Drilling Capacity Mild Steel: 1-3/8"
Distance Column To Spindle: 10-7/16"
Number Of Spindle Speeds: Variable
Range Of Spindle Speeds: 65-540 /245- 2,000 RPM
Column Diameter: 4-1/2"
Spindle Taper (In. x Tpi): MT-3
Spindle Travel: 6"
Spindle Distance To Base: 44-1/2"
Spindle Distance To Table (Max.): 30-1/4"
Table Size: 22"L x 18-3/4"W
Table Travel: 20"
T-Slots Number And Size: 3 & 5/8"
T-Slot Centers: 7-7/16"
Work Table Weight Capacity: 154 lbs.
Base Dimensions: 27" x 19"
Base Slots Number & Size: 2 & 5/8"
Motor: 2 HP, 230V 3ph
Overall Dimensions: 38.18"L x 27.16"W x 79.52"
Weight: 792 lbs.

Includes LED lamp.
