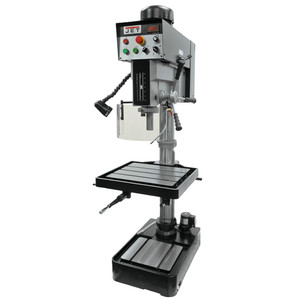

JET 20" Drill Press

SKU: M486005 JDP-20MF

Write a Review
$1,395.00
SKU:
M486005 JDP-20MF
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
353
prop65-text:
true
prop65-text-4:
lead
prop65:

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Hinged-metal belt and pulley cover coupled with quick-adjust motor mount allow rapid spindle speed changes.

  • Rotating, 45° tilting, crank-operated worktable w/quick release clamp
  • Upfront on/off switch on drill press head
  • 1/2" dia. external positive depth stop w/3-nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Ball bearing spindle
  • Built-in worklight
  • 2-yr. mfgr.'s warranty

115/230V, 1-1/2 HP, 1 Phase.
Hole dia. in steel & cast iron 1".
Chuck size 3/4".
Taper MT-3.
Column 3-3/8" dia.
Spindle travel 4-5/8".
12 spindle speeds 150-4,200.
Table work surface 18-1/2" x 16", tilt 45° R&L.
Tool size 18-1/2" x 33-1/2", 67"H.
Weight 282 lbs.

Includes chuck & key, crank-operated cast iron rotating tilting table, depth stop, worklight (60W bulb not included) & manual.

Please specify voltage. 115V will be shipped if not specified.
