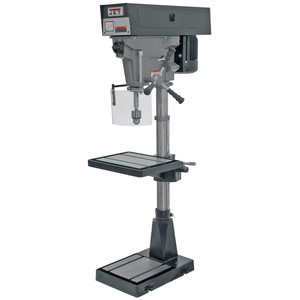

JET 15" Bench Drill Press

SKU: M486055 JDP-15B
Write a Review
$1,364.00
SKU:
M486055 JDP-15B
Availability:
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

From a full 3-1/8” of spindle travel to the sturdy cast iron head with a poly v-belt drive system, this drill press is designed to perform. This drill press also features a one-handed belt-tensioning system and a large 12-1/2" x 17" work table.

  • Spindle travels a full 3-1/8” with one revolution of the handle
  • Large 12-1/2" x 17" precision ground work table features twin T-slot grooves and 4 table slots to accommodate any project
  • One-handed belt tensioning allows for rapid speed changes
  • Power switch features a safety key and large, paddle-style off button
  • Integrated depth stop makes repetitive drilling quick and easy
  • Xacta-X laser system easily identifies the drill center
  • Long-lasting, built-in LED work light reduces shadows
  • Table edge lip designed to make clamping easy
  • Replaceable MDF table insert
  • Large cast iron base provides stability
  • Powered by an efficient 3/4HP, 1Ph, 115V TEFC motor and poly-v belt drive system
  • Mfr.'s 5-year warranty
  • CSA Certified

Motor: 115V only, 3/4 HP, 1 PH, 3.0 Amps, 60Hz
Swing: 15"
Laser system: Class II
Type: Bench Top
Chuck Size: 5/8"
Spindle Travel: 3-1/8"
Spindle Distance to Table (max.): 18-5/16"
Table Tilt: 45° left and right
Spindle Taper: MT2/JT3
Column Diameter: 2-3/4"
Number of Spindle Speeds: 16
Range of Spindle Speeds: 210 - 3,500 RPM
Overall Size: 36.5" x 33.2" x 12.8".
Table Size: 17"W x 12-1/2"L

Base Size: 18"L x 11-3/8"W x 2-1/4"H
Weight: 154 lb.

Includes chuck, chuck key, drift key and hex wrenches.
