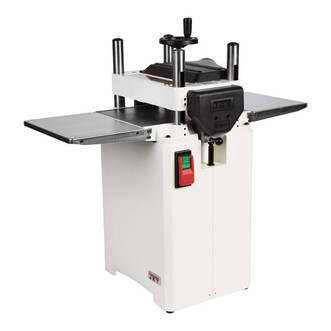

JET 15" Straight Knife Planer, JWP-15B

SKU: M485682 JWP-15B
Write a Review
$2,820.00
SKU:
M485682 JWP-15B
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65-text:
true
prop65-text-3:
lead, titanium dioxide ^^ lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

For projects that require board thickness to be beyond exact, the JET 15" Straight Knife planer gets the job done with ease. This sweet machine features a monster 3-horsepower motor with two-speed gearbox to adjust your feed rate for a better-finished surface. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. Its rock-solid table is constructed of cast iron and features Steel infeed/outfeed table extensions that conveniently fold out of the way. And because even the coolest power planer is one of the messiest machines on the planet, JET's angled 4" dust port keeps your dust hose out of the way for easy hookup on your shop's dust collection system.

  • Innovative JET - Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
  • Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
  • Heavy-duty precision ground cast iron table and four-post design provide maximum control and support when passing boards through planer.
  • Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
  • Dual infeed speed control for 16 fpm or 20 fpm, maximizes cut efficiency
  • Maximum depth of cut 1/8", 6" cutting height and 15" width capacity
  • Heavy-duty folding infeed/outfeed tables provide support for workpieces and fold for convenience
  • Large handwheel with positive gear drive easily moves the head to the desired board thickness
  • Magnetic Switch with green safety light illuminates when powered
  • 4" Dust Port hooks up to dust management system and helps keep the shop clean
  • Mfr. 's 5-year warranty

Style: Floorstanding Model
Type of Cutterhead: Straight Knife
Cutterhead Speed: 5,200 RPM
Cutterhead Diameter: 2-5/8" (68mm)
Cuts Per Minute: 15,600
Number of Knives: 3
Maximum Depth of Cut: 3/16"
Maximum Full-Width Depth of Cut: 1/8"
Maximum Planing Width: 15"
Maximum Planing Thickness: 6"
Minimum Planing Length: 5.6"
Feed Rate: 16 and 20 FPM
Number of Speeds: 2
Table Size: 15" x 21.45" with extensions
Dust Port Outside Diameter: 4" (102mm)
Motor Power: 3 HP
Motor Phase: 1
Motor Voltage: 230
Motor Amps: 15

Includes extension tables, 6mm hex wrench, T30 screwdriver and knife gauge.
