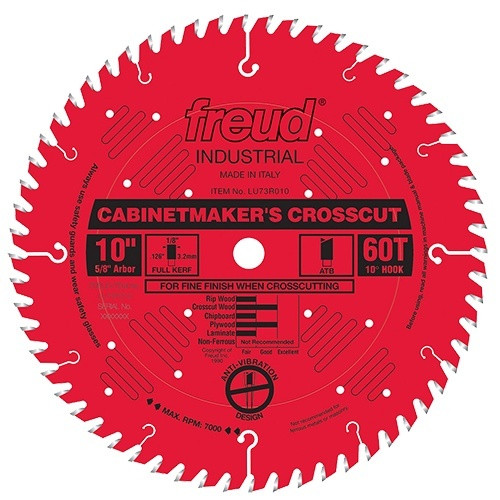

Freud Cabinetmaker's Crosscut Blade LU73R, 10"

SKU: M412122 LU73R010

Write a Review
$98.80
SKU:
M412122 LU73R010
View-Catalog-Page:
369

Frequently Bought Together

Please choose options for all selected products

Description

Freud  Cabinetmaker’s crosscut blade includes a 38° Hi-ATB (Alternate Top Bevel) tooth grind that delivers excellent crosscuts in double-sided veneer plywood and double-sided melamine. With its Perma-SHIELD® non-stick coating and tooth geometry, this blade is designed primarily for heavy use in a cabinetmaker’s shop. The LU73R series is ideal for cutting in hardwood, softwood, plywood, and chipboard in thicknesses from 1/2" to 2-3/4".

  • Premium crosscutting blend of TiCo™ Hi-Density Carbide for maximum performance
  • Perma-SHIELD® non-stick coating for less heat, gumming & corrosion
  • Precision tensioning w/computer controlled equipment for the blade to stay flat & true
  • Positive hook angles for fast cutting & easy feed

Ideal For: Heavy-Duty Crosscutting Blades Designed For The Industrial Cabinetmaker. Depth of cut (1/2" min to 2-3/4" max)
Machine Use: Slide Miter Saw, Table Saw, Radial Arm Saw, Portable Table Saw
Materials: Wood, Plywood, Chip Board & Laminates

Dia. 10"
Arbor 5/8"
Grind Hi-ATB
Teeth 60
Hook 10°
Plate .087"
Kerf .126"
