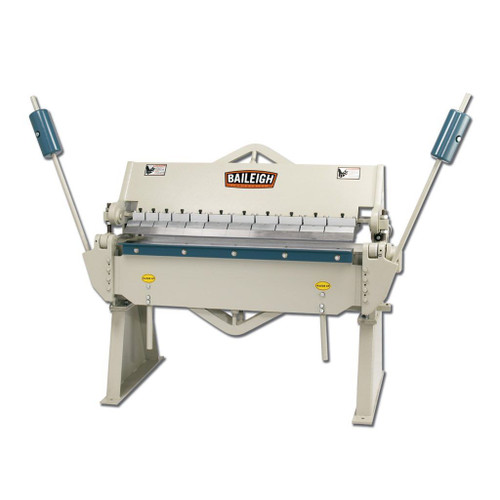

Baileigh 1000404 12 Gauge Finger Brake

SKU: W222524 BB-4812
Write a Review
W222524 BB-4812

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

With its thick steel plate construction, this small metal brake weighs just under 2,000 lbs. Bends up to 12 gauge mild steel across full 4' (48”) length with a maximum bend angle of 135°. Includes 11 hardened and polished 3-piece fingers of varying lengths (3 at 3”, 2 at 4”, 5 at 5”, and 1 at 6”) to make many different box sizes. Up to 6” box depth is possible from 3-piece design. Heavy counterweights assist with bending thick sheet metal, saving energy for operators who frequently use the box brake for long periods of time. Massive torsion system connected to the steel beam and leaf keeps the beam from twisting at maximum capacity. Electro-welded steel framework supported by solid steel adjustable trusses prevents flexing and maintains accuracy.

  • Stop rod system helps make repeatable bends and simplify production runs
  • Compact size makes a great fit for tight floor plans
  • 2 handwheels adjust the gap for varying material thickness
  • Mfr.'s 1-year parts warranty plus lifetime technical support by phone

Min Reverse Bend: .625"
Thickness (SS): 12 ga.
Box Depth: 6"
Beam Adjustment: 1"
Bend Angle: 0 – 135°
Finger Sizes: 3" – 4" – 5" – 6"
Power: Manual
Length: 48"
Shipping Dimensions: 70" x 32" x 42"
Shipping Weight: 1,690 lbs.
