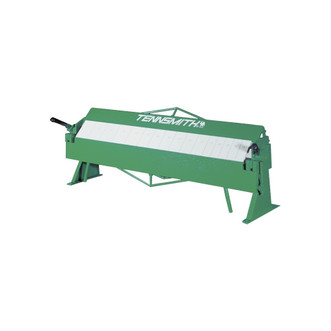

Tennsmith Box and Pan Brake, 22 Gauge

SKU: M892850 U48-22
Write a Review
M892850 U48-22
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products


Bench-mounted hand brake provides an economical means of performing a wide range of sheet metal bending and forming operations. This brake is made of all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points.

Model U48-22 is a lighter capacity version and offers economical alternatives in working 22-gauge and lighter materials. Also, the lighter weight make this models better suited for transporting to remote job sites.

Capacity, Mild Steel: 22 Gauge (.75mm)
Bending Length: 48-1/4" (1,225mm)
Maximum Depth Of Box: 3" (76.2mm)
Maximum Lift Of Beam: 7/8" (31.75mm)
Front To Rear Beam Adjustment: 1/4" (6mm)
Minimum Reverse Bend: 5/16" (7.9 mm)
Minimum Flange In Capacity Material: 3/8" (9.5mm)
Finger Widths: 2, 3, 4" (51, 76, 101mm)
Weight 280 lbs. (127 kg) shipping
