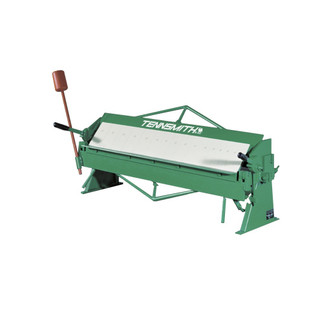

Tennsmith Box and Pan Brake, 16 Gauge

SKU: M892815 HBU48-16
Write a Review
M892815 HBU48-16
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products


Bench-mounted hand brake provides an economical means of performing a wide range of sheet metal bending and forming operations. This brake is made of all-steel welded construction, readily adjustable and utilize bronze bearings at pivot points.

Model HBU48-16 is a heavy-duty bench brake suitable for box and pan or straight bending in up to 16-gauge mild steel. The brake features a removable apron angle and apron insert permitting 1/4" reverse bends in lighter materials. The upper leaf and nose bar has a wide range of adjustment for radius bending. Standard equipment includes an apron stop rod for repeat bends, extension handles and a counterweight.

Capacity, Mild Steel: 16 Gauge (1.60mm)
Bending Length 48-1/4" (1,225mm)
Maximum Depth Of Box 4" (101.70mm)
Maximum Lift Of Beam: 1-1/4" (31.75mm)
Front To Rear Beam Adjustment: 5/8" (16mm)
Minimum Reverse Bend 1/4" (6 mm)
Minimum Flange In Capacity Material: 1" (25mm)
Finger Widths: 2, 3, 4" (51, 76, 101mm)
Weight 495 lbs. (224.5 kg) shipping

Includes apron stop rod, extension handles and counterweight.
