Shop Fox 12" x 15" Wood Lathe

SKU: W786853 W1836
Write a Review
$708.00
SKU:
W786853 W1836
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65:
sash:
NEW!
sashcolor:
#245E98

Frequently Bought Together

Please choose options for all selected products

Description

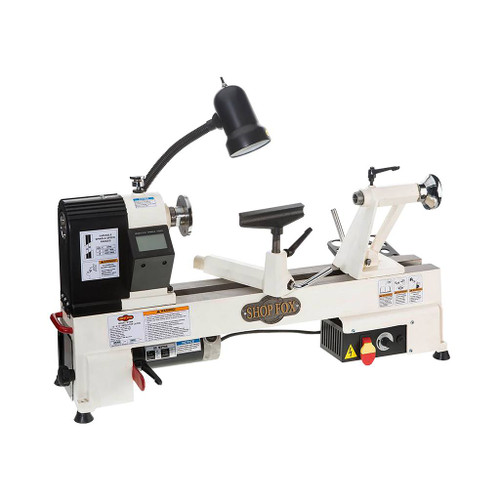

The Shop Fox® W1836 Wood Lathe is packed with features that woodturners love. A powerful 3/4 HP motor with electronic variable-speed spindle control and a digital RPM readout for precise speed adjustments make this lathe a top choice. 24 indexes in increments of 15º allow evenly spaced cuts while the headstock stays in a locked position, which opens new possibilities not available on most benchtop lathes. Heavy-duty cast-iron construction and rubber feet for increased stability and smooth turning operations.

Swing Over Bed: 12"
Swing Over Tool Rest Base: 9"
Distance Between Centers: 15"
Spindle Bore: 0.393"
Spindle Taper: MT2
Tailstock Taper: MT2
Spindle Thread: 1"-8 TPI
Speed Range: VS 500-1,800 RPM & 1,000-3,800 RPM
Number of Indexing Positions: 24
Centerline of Spindle to Floor: 13-1/2"
Bed Construction: Cast Iron
Motor Power: 3/4 HP
Motor Phase: 1 PH
Motor Voltage: 110V
Motor Amps: 7.4
Tool size: 32-1/2"L x 15-1/2"W x 17"H
Tool weight 79 lbs.

Includes tool holder, knockout bar, work lamp, live center, spur center and 3" faceplate.
