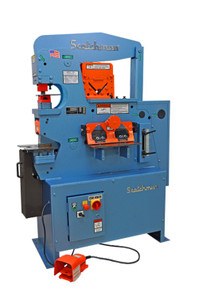

Scotchman 50-Ton Hydraulic Ironworker, 3HP

SKU: M772012 50514-EC-3PH
Write a Review
$13,855.00
SKU:
M772012 50514-EC-3PH
Availability:
Ships direct from manufacturer. Lead times may vary.

Frequently Bought Together

Please choose options for all selected products

Description

The versatile 50514 EC hydraulic ironworker from Scotchman Industries is now better than ever with the addition of a 5th work station. The 50514 EC is an all-around workhorse and comes standard with a 50-ton punch capable of producing a 13/16" hole in 3/4" material, a 4" x 4" x 3/8" angle shear, a 14" flat bar shear, a built-in rectangle notcher and a fifth station capable of housing an optional pipe notcher. In addition to the standard tooling features, the 50514 EC is also compatible with a range of optional tools from Scotchman for added versatility and function around the shop. Like all Scotchman ironworkers, 50514 EC is proudly made in the USA and backed by Scotchman’s Best in the Business 3-year warranty.

  • Single Operator, 5 Stations
  • 50 Ton Punch Station (1-1/4" in 1/2" and 13/16" in 3/4")
  • Keyed Punch Ram for Safety
  • 6" Throat Depth
  • 2" Die Holder
  • Punch Nut with Wrench & Stripper
  • One Round Punch & Die: Max. Dia. 1"
  • Adjustable Electric Stroke Control with Scale
  • Electric Remote Foot Pedal
  • Angle Shear Capacity 4" x 4" x 3/8" at 90° and 2" x 2" x 3/8" at 45°
  • 14" Flat Bar Shear with 4-Way Reversible Blade (3/4" x 4", 1/2" x 8", 3/8" x 10" 1/4" x 14")
  • Rectangle Notcher - 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" x 3/8"
  • Tool Table Work Area
  • Slug Receptacle
  • Electrical Box Supplied with Emergency Palm Button and Lock-out Tag-out Accommodations
  • All Guards Necessary to Comply with ANSI B 11-5 Standards
  • Forklift Accommodations
  • Mfr.'s 3-year warranty on parts
  • Made in USA

Motor: 208/230/460V, 3 HP, 3 Phase
Punching Capacity: 50-ton (1-1/4" in 1/2", 13/16" in 3/4")
Special Tooling: 2-1/4" Max. Dia.
Throat Depth: 6"
Flat Bar Shear 14" Length: 3/4" x 4", 1/2" x 8", 3/8" x 10", 1/4" x 14"
Angle Shear 90°: 4" x 4" x 3/8"
Angle Shear 45°: 2" x 2" x 3/8"
Brake 8": 30 ton
Brake 12": 25 ton
Open End Brake Max.: 1/4" x 3" Flat or Angle Iron
Pipe Notcher Schedule 40 I.D.: 3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher: 2-1/2" x 3" x 5/16", 2-1/2" x 2-3/4" X 3/8"
90° V. Notcher: 6" x 6" x 1/8", 3" x 3" X 1/4"
Rod Shear: 1/4" to 1" 5 Cavity
Round Rod (Max.): 7/16", 9/16", 5/8", 3/4", 1"
Square Rod (Max.): 1/4" to 3/4", 1 Cavity, 3/4"
Square Tube Shear: 1/2" to 1", 12 ga.
Picket Tool: 1/2", 3/4", 1", 16 Gauge
Strokes Per Minute in Light Material: 1/4" stroke (Punch Station)
Strokes Per Minute in Heavy Material: 3/4" stroke (Punch Station)
Hydraulics: 2350 psi
Tool size: 29"W x 47"L x 59"H
Tool weight: 1,515 lbs. (shipping)
