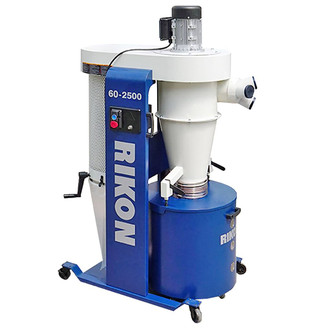

Rikon Cyclone Dust Collector 2.5HP 230V

SKU: M694247 60-2500
Write a Review
$3,038.00
SKU:
M694247 60-2500
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

With a lighter weight design, this impeller lasts longer and reduces stress on the motor while meeting or exceeding air flow compared to similar models. This reduction in stress allows the motor to operate cooler and more efficiently: up to 33% less amperage draw on the electrical circuit and up to 33% less cost to operate. Remote control start function operates via Bluetooth® RF band technology which increases range so you can operate the unit from a different room.

  • Casters for mobility
  • Safety lock toggle switch
  • 2.5 HP TEFC motor
  • 4″ and 8″ hose inlet

Horsepower: 1.75
Amps: 12
Volts: 115V, 60Hz
RPM: 3,450
Blower Wheel Diameter: 14.5"
Blower Wheel Material: Steel
Air Flow @ 4" Diameter: 1,470 CFM
Static Pressure (Water Column): 13.2" WC
Sound Rating @ 3': <83.7 dB
Cannister Filtration: 1 Microns
Bag Capacity: 3 Cu. Ft
Bag Length: 23-5/8"
Hose Connection: 1 @ 8", 3 @ 4"
Size: Length 44"L x 28"W x 68"H
Weight: 258 lbs.

Includes
Base Panel with Casters
Collection Drum
Separator Funnel
Filter Cartridge Assembly
Dust Plenum w/Cyclonic Separator
Impeller
6" to Dual 4" Inlet
Collection Bags
Motor and Switch Assembly
Left Support Panel
Panel Cross Brace
Right Support Panel
Hardware
Tools
