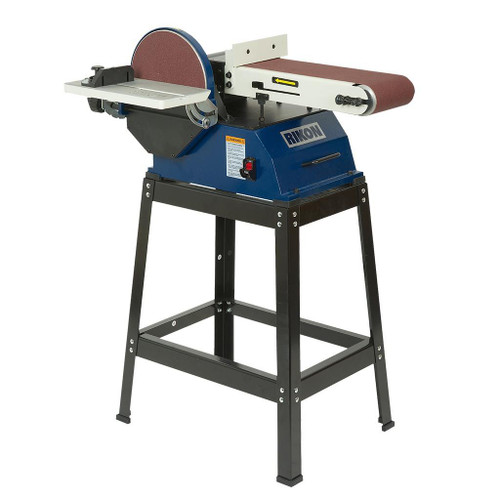

Rikon 6" x 48" Belt / 10" Disc Sander

SKU: M694220 50-122
Write a Review
$597.00
SKU:
M694220 50-122
Availability:
Ships direct from manufacturer. Lead times may vary.
Product Type:
Combination Belt/Disc Sander
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

6" x 48" Belt / 10" Disc Sander with Stand offers woodworkers a powerful motor, high positioned disc location, cast aluminum disc table with patented rack & pinion table angle-setting handle system, and it includes a steel stand. Belt frame adjusts in any position from horizontal to vertical to meet your sanding needs.

The belt's support fence can be removed for full access to the whole length of the belt, and with the sanding disc positioned below the belt surface, it will not interfere with belt sanding of wide projects that overhang the frame. The large 10" dia. disc is very useful for edge work. Machine features heavy cast iron base, quick release belt lever, cast iron tilting table and miter gauge.

  • Powerful induction motor provides plenty of power for sanding
  • Frame & base made of sturdy metal for extra rigidity
  • Spring loaded tension automatically keep belt at best-operating level
  • Belt tracking knob allows correct positioning of belt on frame
  • PSA sandpaper disc applies quickly to the metal disc plate for instant use
  • Work table adjusts 0° to 90° with large locking handle for sanding angles
  • Dust hood and port for efficient dust removal
  • On/Off switch with removable safety tab for extra security
  • Mfr.'s 5-yr. warranty

120V, 60 Hz, 1 HP, 8 Amps
Belt size 6" x 48"
Belt table: 8-3/16" x 2-1/8"
Belt speed 1,836 SFPM
Belt tilt 0°-90°
Disc dia. 10" PSA
Disc speed 2,510 RPM
Disc table 6-5/8" x 13"
Miter gauge T-slot 1/4" x 5/8"
Dust port 2"
Size 31-1/2"L x 22"W x 41-1/2"H
Base 23-1/4" x 16-7/8"
Weight 86.6 lbs.

Includes stand, miter gauge, sanding disc, sanding belt and wrenches.
