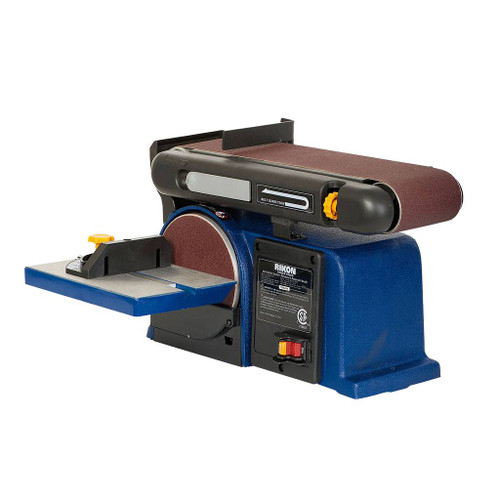

Rikon 4" x 36" Belt / 6" Disc Sander

SKU: M694198 50-112
Write a Review
$266.00
SKU:
M694198 50-112
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

4" x 36" Belt / 6" Disc Sander is the preferred style of machine where the majority of sanding would be done on the wide abrasive belt. Belt frame adjusts in any position from horizontal to vertical to meet your sanding needs. The belt's support fence can be removed for full access to the whole length of the belt, and with the sanding disc positioned below the belt, it will not interfere with belt sanding of wide projects that overhang the frame. The machine features heavy cast iron base, quick release belt lever, and handy sanding disc with tilting table for fine, detail work.

  • Cast Iron Steel Construction
  • Cast Aluminum Table
  • Mfr. 's 5-year warranty

Horsepower: 1/2 HP
Amps: 4.3
Volts: 120V, 60Hz
Disc Table Size: 9" x 6-1/4"
Disc Table Tilt: 0° to 45° Forward
Miter Gauge: Included
Miter Gauge Slot: 5/8" x 3/8"
Belt Table Size: 4-3/4" x 1"
Belt Size: 4" x 36"
Belt Speed: 1,900 SFPM
Belt Tilt: 0° – 90°
Disc Diameter: 6" PSA
Disc Speed: 3,450 RPM
Overall size: 11”H x 21"W x 10"D
Base Size: 15-1/4" x 6-5/8"
Dust Port: 2-1/2"
Weight: 38.5 lbs.

Includes miter gauge, 80 grit disc and 80 grit belt.
