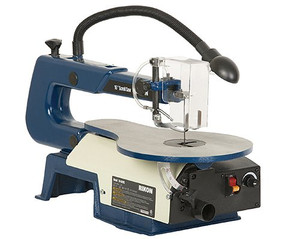

Rikon 22" VS Scroll Saw

SKU: M694135 10-622VS
Write a Review
M694135 10-622VS

Frequently Bought Together

Please choose options for all selected products


Designed for making small, intricate curved cuts in thinner woods. Thin working blade allows material to be freely turned in tight arcs. Ideal for making decorative scroll work, puzzles, inlays, and craft items. Variable speed DC motor adjusts with a dial for different materials. Extra deep 22” throat and large steel table provide stability and greater access for large projects. Table also tilts left and right for making angled cuts. Uses 5” long plain end (pinless) blades.

  • 120V/60Hz/1.6A DC motor
  • Cast iron base
  • Large aluminum table
  • Accepts pin-type blades
  • Mfr's 5-year warranty

Amps: 1.6
Volts: 120V, 60 Hz
Table Size: 25-5/6" x 13-3/4"
Left Tilt: 30°L, 0°, 45°R
Blade Length: 5"
Height: 2"
Stroke: 3/4"
Electronic Variable Speeds: 550 – 1,550 SPM
Throat Depth: 22"
Table in Front of Blade: 12-1/2"
Stroke SPM: 550 – 1,550
Blade Supplied: 18TPI, Reg., Pin-less
Dust Port: Diameter 1-3/8"
LED Light: 120V/10W
Maximum Sound Level: <80 dB
Height: 16-9/16"
Width: 14-1/8"
Base Size: 18-5/8" x 13-1/4"
Net Weight: 68 lbs.

metal base
dust blower nozzle
lower dust port
