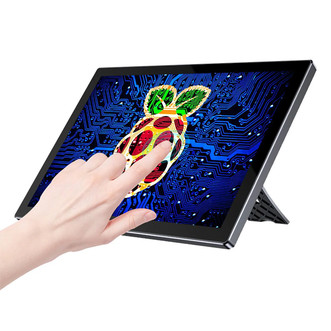

Raspberry Pi 7" Touch Screen Display

SKU: M533335 LCD-13733
Write a Review
$90.00
SKU:
M533335 LCD-13733
Product Type:
Non-Soldering

Frequently Bought Together

Please choose options for all selected products

Description

The 7" Touch screen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi’s. Touch screen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

  • 7" Touch screen Display.
  • Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
  • Viewable screen size: 155mm x 86mm
  • Screen Resolution 800 x 480 pixels
  • 10 finger capacitive touch
  • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port
  • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi
  • Will require the latest version of Raspbian OS to operate correctly

Includes 7" Touch screen Display, adapter board, DSI ribbon cable, 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display, 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units).
