Raspberry PI 5 8GB

SKU: M832723 DEV-23551
Write a Review
$112.00
SKU:
M832723 DEV-23551
Availability:
TEMPORARILY UNAVAILABLE
sash:
Temporarily Unavailable
sashcolor:
#808080
isVariation:
/multiple-variations/raspberry-pi-5/

Frequently Bought Together

Please choose options for all selected products

Description

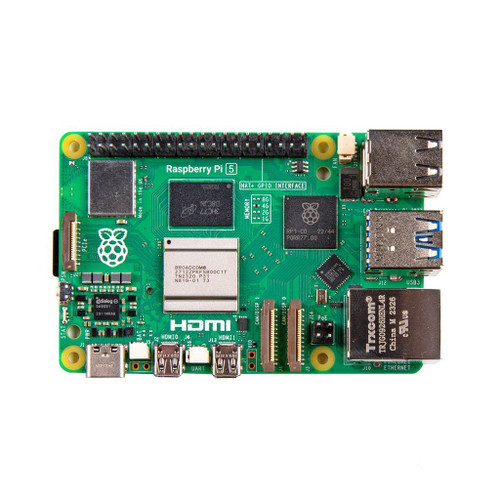

Raspberry Pi 5 features a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz. It delivers a 2-3x increase in CPU performance compared to Raspberry Pi 4. You'll also notice a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU, dual 4Kp60 display output over HDMI, and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor.

For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 “southbridge” provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals. A pair of four-lane 1.5Gbps MIPI transceivers triples the total bandwidth and supports any combination of up to two cameras or displays. Peak SD card performance is doubled through support for the SDR104 high-speed mode. The platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.

Processor:
2.4GHz quad-core 64-bit Arm Cortex-A76 CPU
cryptography extensions
512KB per-core L2 caches
2MB shared L3 cache

Features:
VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
Dual 4Kp60 HDMI® display output with HDR support
4Kp60 HEVC decoder
LPDDR4X-4267 SDRAM
Dual-band 802.11ac Wi-Fi®
Bluetooth 5.0 / Bluetooth Low Energy (BLE)
microSD card slot, with support for high-speed SDR104 mode
2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
2 × USB 2.0 ports
Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
2 × 4-lane MIPI camera/display transceivers
PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
5V/5A DC power via USB-C, with Power Delivery support
Raspberry Pi standard 40-pin header
Real-time clock (RTC), powered from external battery
Power button

No soldering is required.
