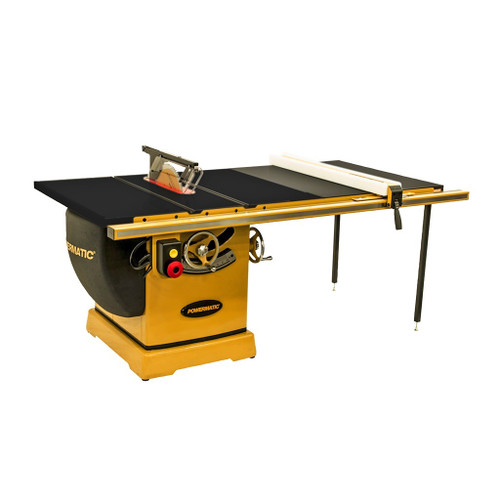

Powermatic 14" PM3000T Table Saw 230V, 7.5HP, 3PH, 50" ArmorGlide

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

This table saw features ArmorGlide Technology which gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control. Adjustable miter gauge is built with robust materials and many positive stops for the most commonly used angles.

• Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
• Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
• Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
• Quick-release riving knife rises and lowers with the blade to reduce the chance of kickback
• Wide stance, heavy-duty, one-piece cast iron box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade
• Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up
• Arbor lock lever is accessible from above the table top for quick and easy blade changes without dual arbor wrenches

Style (Type): Cabinet
Motor Power (HP): 7.5
Motor Phase: 3
Motor Voltage: 230
Prewired Voltage: 230
Motor Current (Amps):
Recommended Circuit Size (Amps.): 30
Blade Diameter: 14"
Arbor Diameter: 1"
Arbor Speed (RPM): 4,500
Maximum Depth of Cut: at 90°: 5-1/8", 45°: 3-1/2"
Maximum Diameter of Dado: 8"
Maximum Width of Dado: 13/16"
Table in Front of Saw Blade at Maximum Depth of Cut: 15-1/2"
Maximum Rip Right of Blade: 50"
Maximum Rip Left of Blade: 14"
Table Type: Cast Iron
Table Height from Floor: 35-1/4"
Table Size: 26" x 38"
Table T-Slot: 3/4" x 3/8"
Overall Dimensions: 84-11/16"L x 46-1/2"W x 42-7/8"H
Dust Collection Minimum CFM Required: 600
Dust Port Outside Diameter: 4"
Weight: 467 lbs.
