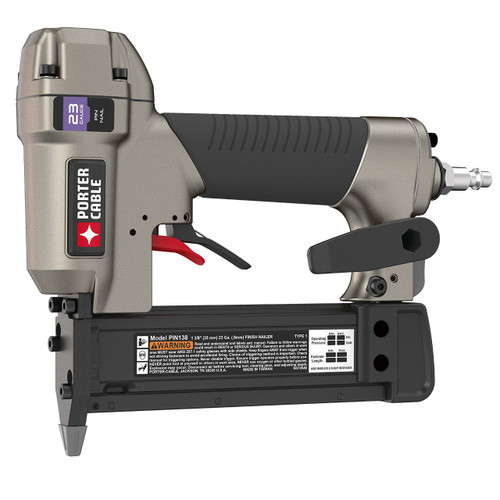

Porter Cable 23 Ga. 1-3/8" Pin Nailer

SKU: M636650 PIN138
Write a Review
M636650 PIN138

Frequently Bought Together

Please choose options for all selected products


Impressive performance in a lightweight aluminum body for all day use. Designed to fasten materials that would normally split when using larger tools, this pin nailer is perfect for light fastening and clamping applications such as small trim and small decorative moldings, cabinet crown molding, raised panel doors, rope and bead molding, mantle building, and wood joining. Maintenance-free motor requires no oil. It also utilizes a dual-stack ring system where the outer ring is designed to minimize internal friction, resulting in longer tool life. This improved motor design helps reduce the possibility of work surface oil contamination and promotes hassle-free tool operation.

  • Consistent power and penetration to sink 1-3/8" nail sub-flush into oak
  • Rear exhaust to keep contaminates away from work
  • Dry-fire lock out alerts user to reload nails and eliminates empty nail holes
  • Narrow nose design with removable non-marring nose tip with on-tool storage
  • Tool automatically adjusts for different fastener lengths for easier loading and less problems with pins out of spec
  • Convenient side-load magazine holds 130 micro pin nails
  • Reversible belt clip to keep tool close to user
  • Dual trigger feature
  • Integrated rubber grip for improved comfort
  • Mfr.'s 3-year limited warranty

Recommended Operating Pressure: 60‑100 PSI
Air Consumption per 100 cycles: 1.61 SCF
Loading capacity: 132 nails
Lubrication: Oil‑Free
Nail: 23 ga. wire (headless or slight head pins)
Lengths: 5/8"– 1-3/8"
Air Inlet: 1/4" NPT
Size: 8.1"L x 1.9"W x 7.5"H
Weight: 2.1 lbs.

1/4" air fitting
molded case
