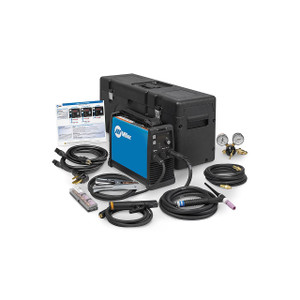

Miller Maxstar 161 STL TIG/Stick Welder

SKU: M566464 907710
Write a Review
M566464 907710

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Compact design with convenient handle/shoulder strap provides maximum portability. Separate 120 and 240 volt power cords disconnect from the rear panel of the machine without using any tools. Using inverter-based power source provides superior arc starts and excellent weld puddle control, even with E6010 electrodes. Adaptive Hot Start™ technology easily handles difficult-to-strike electrodes. Machine can detect if the electrode is stuck to the part and turns the welding output off to safely and easily remove the electrode.

  • With a built-in gas solenoid, there's no need for a bulky TIG torch with a gas valve
  • 5 amp TIG capability allows you to weld thinner materials than other machines
  • Manufacturer's 3-year warranty

Material Thickness: Steel 0.020" - 3/16"
Weldable Metals: Stainless Steel, Steel
Input Voltage: 110/115/120V, 220/230/240V
Input Phase: 1-Phase
Input Hz: 50/60 Hz
Current Type: DC
Max Open Circuit Voltage: 48 VDC
Amperage Min: 5 Amps
Amperage Max: 160 Amps
Portability: Handles, Strap
Weld Output: CC
Size: 5.6"W x 13.5"D x 10.3"H
Weight: 13 lbs.

6.5' primary cords for 120V and 240V
13' stick electrode holder with 25 mm. Dinse-style connector
10' work clamp with 25 mm. Dinse-stlye connector
Adjustable handle/shoulder strap
Quick Reference Guide
