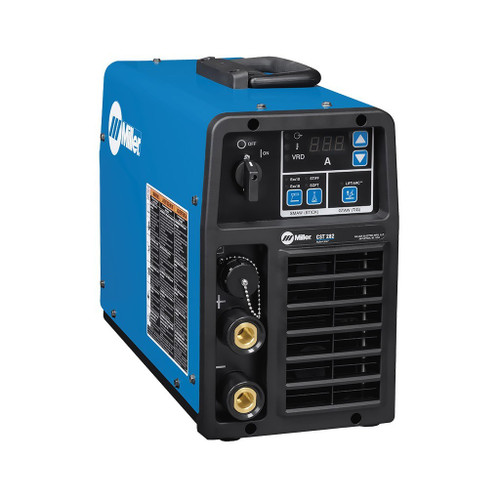

Miller CST 282 Stick/TIG Welder, 208-575V, Tweco

SKU: M566383 907-770
Write a Review
$3,620.00
SKU:
M566383 907-770
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
441
sash:
NEW!
sashcolor:
#245E98

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers.

Designed for welding pipe and plate in the construction industry -- this compact, 35 pound, goes-anywhere welder delivers 280 amps of superior Stick and TIG performance with Auto-Line™ Technology to utilize nearly any source of primary power on the jobsite.

  • HDV Technology For a sharp detailed view at any angle without distortion
  • Auto-Line™ Technology Work in more places with Auto-Line technology which automatically calibrates the power source to operate properly when connected to any primary input voltage ranging from 208-575 volts, single- or three-phase, 50 or 60 Hz — with no manual linking required. Learn More
  • Portable Weighing only 34.6 pounds, the CST 282 is easily moved around a jobsite for increased operator comfort and safety. It is 7 pounds (20%) lighter than the previous CST model.
  • Universal Connector System Miller-exclusive universal output connector system can be used with either Tweco- or Dinse-style connectors. Welders can convert the machine from one connector style to another — without having to take the machine apart or deal with adapters.
  • Simple & Accurate Interface Digital meter and push-button controls for more precise setting when presetting or monitoring welding amperage.
  • Lift-Arc™ provides arc starting that minimizes contamination of the electrode and without the use of high-frequency.
  • Adaptive Hot Start™ Automatically makes starting stick electrodes easy without creating an inclusion.
  • Voltage Reducing Device VRD technology reduces output voltage when the operator isn’t welding, lowering the potential hazard from inadvertent contact with the electrode during non-welding pauses.
  • Mfr.'s 3-year True Blue Warranty

Processes: Stick (SMAW), TIG DC (GTAW-DC)
Weldable Metals: Specialty Metals, Stainless Steel, Steel
Input Voltage: 208V, 220/230/240V, 380/400/440V, 460/480V, 575V
Input Phase: 1- and 3-Phase
Input Hz: 50/60 Hz
Current Type: DC
Rated Output: 280 A at 31.2 VDC, 35% duty cycle
Max Open Circuit Voltage: 103 VDC
Portability: Handle(s)
Weld Output: Stick: 30–280 A, TIG: 5–280 A
Size: 8"W x 13.5"H x 18.5"L
Weight: 34.6 lbs.

Includes 6' power cable.
