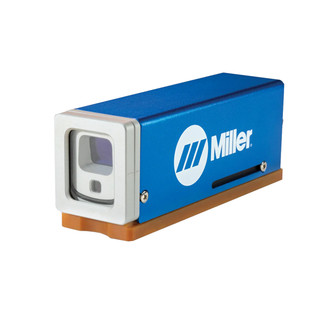

Miller ArcCapture Weld Camera System

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Deliver next-level training with this high-definition weld camera system designed for modern welding programs. Project live demos, observe welds remotely, and give welders a front-row seat to every weld. Multi-device streaming enables you to view and manage live weld footage from a variety of devices including smartphones, tablets, and computers for flexible access in any environment.

• 1,920 x 1,080 resolution for clear recording of the welding arc for real-time observation.
• Wi-Fi connectivity for phone or tablet via Wi-Fi or to large screens for group viewing or training.
• Flexible field of view with interchangeable 8 mm, 12 mm, or 16 mm lenses.
• Portable and easy-to-install with a lightweight, compact design.
• No extra lighting required as arc light is the only light source to deliver sharp, high-definition video.
• Reduces rework and material waste through better visibility and timely feedback.

Applications: Schools, training centers, Manufacturing, Automation
Processes: MIG (GMAW) Flux-cored (FCAW) Stick (SMAW) TIG (GTAW)
Resolution: 1920 x 1080 (Full HD color)
Focus Type: Fixed
Shutter Type: Electric rolling
Lens Mount: M12
Filter: UV + IR cut
Dynamic Range: 140 + dB
Video Output: HD-SDI
External Terminal: 50 SMA connector/power control, 4-pin round screw connector
Operating Temperature: 14 – 140°F
Power Consumption: Max. 3W
Power Supply: 9V 1A adapter
Size: 1.18"W x 4.09"D x 1.57"H
Weight: .34 lbs.

Includes
converter
12mm lens
power supply cords
lens cover
16.4' SDI cable
3.2' USB cable
