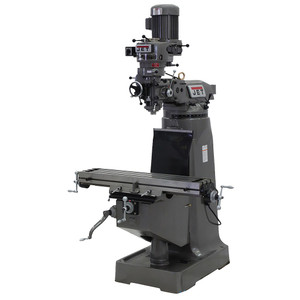

JET Vertical Milling Machine, 3 PH

SKU: M485702 JTM-1
Write a Review
$10,026.00
SKU:
M485702 JTM-1
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
435
prop65-text:
true
prop65-text-3:
lead, cadmium ^^ mercury, lead, cadmium
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Frame of sturdy, hardened steel (meehanite) casting with precision-bored and honed milling head for powerful, accurate milling.

  • Large dia. quill is chromed
  • High-precision spindle bearings
  • Spindle head is internally cooled
  • Heavy-duty splined motor drive
  • 1-piece quill pinion & shaft
  • Precision-ground table
  • Adjustable gibs throughout
  • Fine handwheel downfeed, lever downfeed
  • Double knee & table locks
  • Ram equipped w/double locks
  • Saddle features 1 lock
  • Precision-hardened & scraped ways
  • 3-stage power downfeed w/automatic stop
  • Dish in base w/internal coolant sump

230V, 2 HP, 3 phase, 2 speed.
Spindle taper R-8.
Speed 80 to 3,500 rpm.
Quill 16, diameter 3.375".
Travel 5".
Travel to table 17-1/2", to column 19" & 6-3/4".
Downfeeds per revolution of spindle 0.0015", 0.003", 0.006".
Head movement 90° R&L, 45° F&B.
Collet capacity 1/8" to 7/8".
Table size 9" x 42".
T-slots 3, size 5/8", centers 2-1/2".
Longitudinal table travel 30".
Cross travel 12".
Travel of knee 16", overarm 12-1/4".
Max. weight of workpiece 550 lbs.
Tool size 57"W x 64"D x 81"H.
Tool weight 2,200 lbs.

Includes chromed dovetail style ways, 1-shot lubrication system, way covers, draw bar & tool box w/tools.
