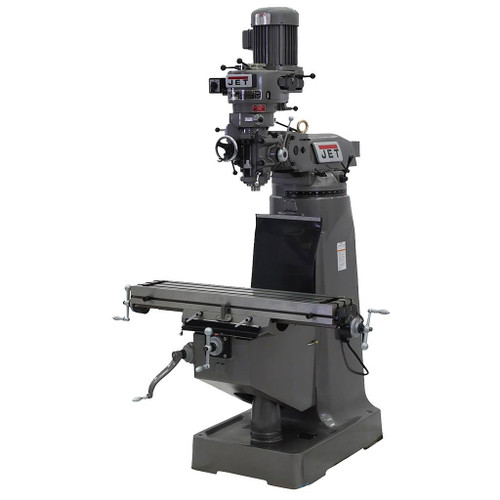

JET Step Pulley Vertical Milling Machine, 1 PH

SKU: M485703 JTM-2
Write a Review
$12,845.00
SKU:
M485703 JTM-2
Availability:
Ships direct from manufacturer. Lead times may vary.
prop65-text:
true
prop65-text-3:
lead, cadmium ^^ mercury, lead, cadmium
prop65:

Frequently Bought Together

Please choose options for all selected products

  • Choose Options

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

Three-stage power down feed with auto stop, high precision Class 7 spindle bearings and the rugged stability of Meehanite® castings ensures you get everything you need from the JTM-2 model. The internally cooled spindle head prevents seizing, and JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two-Year Warranty

  • Certified Meehanite® castings
  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Spindle head is internally cooled
  • Three stage power downfeed with automatic stop
  • Tolerance test sheet included

Motor: 2 HP, 115/230V, 1Ph
Spindle Travel: 5"
Style: Step Pulley R8
Number of Spindle Speeds: 8
Spindle Taper: R-8 In. x TPI
Max Distance Spindle to Table: 17-1/2
Distance Spindle to Column: 19" Max
Quill Diameter: 3-3/8"
Range of Spindle Speeds: 80 - 2,720 RPM
Collet Capacity: 1/8" - 7/8"
Quill Down Feed Rates: .0015 - .003 - .006 IPR
Table Longitudinal Travel: 23-7/8"
Table Longitudinal Travel With Powerfeed: 20-2/7"
Table Cross Travel: 12-1/2"
T-Slot Centers: 2-1/2"
Work Table Weight Capacity: 550 lbs.
Travel of Knee: 14-1/2"
Travel of Ram: 13-3/8"
Table Size: 9"L x 42"W
Overall Dimensions: 57"L x 64"W x 82"H
Weight: 2,200 lbs. (shipping)

Includes turrent mill, flat way cover, pleated way cover, draw bar, 3 adjustment handles, 2 belt guards and tool box with tools.

Please specify voltage. 230V will be shipped if not specified.
