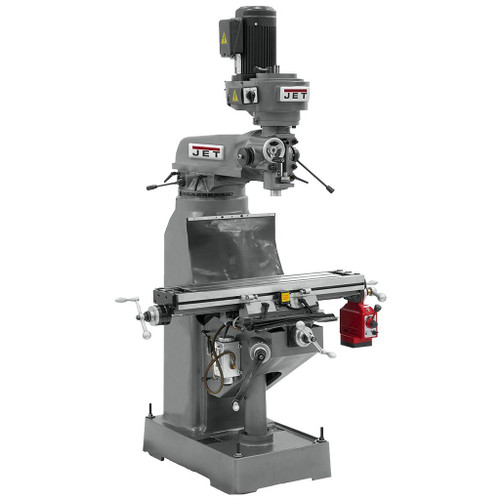

JET Step Pulley Vertical Milling Machine, 3 PH

SKU: M485702 JTM-1
Write a Review
M485702 JTM-1
Ships direct from manufacturer. Lead times may vary.
lead, cadmium ^^ mercury, lead, cadmium

Frequently Bought Together

Please choose options for all selected products


Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at

The Jet JTM-1, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite® Castings to ensure that every job is up to your standards. The internally cooled spindle head prevents seizing and precision engineering ensures superior results with all the features you've come to expect, all backed by the industry leading JET Two-Year Warranty.

  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Satin chrome finished dials
  • Tolerance test sheet included

Motor: 2 HP, 230V, 3Ph
Spindle Travel: 5"
Style: Step Pulley R8
Number of Spindle Speeds: 16
Spindle Taper: R-8 In. x TPI
Max Distance Spindle to Table: 17-1/2
Distance Spindle to Column: 19" Max
Quill Diameter: 3-3/8"
Range of Spindle Speeds: 80 - 5,440 RPM
Collet Capacity: 1/8" - 7/8"
Quill Down Feed Rates: .0015 - .003 - .006 IPR
Table Longitudinal Travel: 23-7/8"
Table Longitudinal Travel With Powerfeed: 20-2/7"
Table Cross Travel: 12-1/2"
T-Slot Centers: 2-1/2"
Work Table Weight Capacity: 550 lbs.
Travel of Knee: 14-1/2"
Travel of Ram: 13-3/8"
Table Size: 9"L x 42"W
Overall Dimensions: 57"L x 64"W x 82"H
Weight: 2,200 lbs. (shipping)

Includes turrent mill, flat way cover, pleated way cover, draw bar, 3 adjustment handles, 2 belt guards and tool box with tools.
