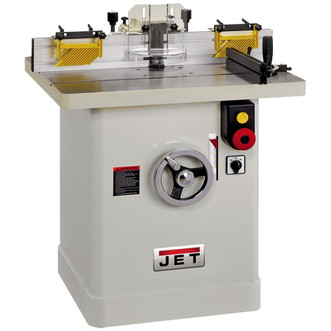

JET JWS-35X3-1 Shaper 3HP, 1Ph

SKU: M486002 JWS-35X3-1

Write a Review
$3,248.00
SKU:
M486002 JWS-35X3-1
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
385
prop65-text:
true
prop65-text-3:
lead, titanium dioxide ^^ lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

This heavy-duty JET Shaper is available with a powerful 3HP, 1Ph motor with magnetic controls. The four-speed (4000, 6000, 8000, 10000 RPM) step pulley drive with quick release lever allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt. The independently adjustable fences have micro adjust controls for precise positioning.

  • 4" Dust port built into fence for convenient hookup to any dust collection system
  • Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
  • Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
  • Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
  • Large 26-3/4” X 32-1/4” precision ground cast iron table provides a durable work area, predrilled for power feeder
  • Poly-V-belt transfers maximum power to the spindle
  • Powerful 3HP, 1Ph motor with magnetic controls
  • Reversible spindle speeds for diverse shaping jobs
  • Starting Pins for irregular shaping
  • V-belt transfers maximum power to the spindle
  • Mfr.'s 5-year warranty

Maximum Spindle Diameter: 1-1/4"
Spindle Travel: 4"
Spindle Size Under Nut: 4"
Spindle Speeds (RPM): 4000, 6000, 8000, 10000, reversing
Table Size: 32-1/4"L x 26-3/4"W
Table Opening Diameter: 6-19/64"
Table Inserts: 2" (2-9/16", 4-21/64")
Fence Size x 2: 4-7/8" (H) x 16" (W)
Motor Power: 3 HP
Table Height from Floor: 33-1/4"
Dust Collection Minimum CFM Required: 600
Dust Port Outside Diameter: 4"
Motor Voltage: 230V, Prewired 230V
Motor Amps: 14
Overall Dimensions: 32-1/4"L x 28-1/4"W x 42-3/8"H
Weight: 475 lbs.

Includes 1-1/4" spindle, fence, 2 feather boards and miter gauge.
