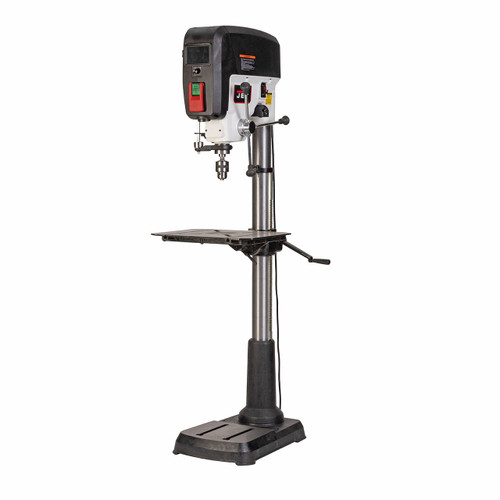

JET 20" Smart Drill Press JT1-2060, 115/230V

Description

Motor Type: Brushless
Horsepower: 1.5
Phase: Single
Voltage: 115/230V
Cycle: 60Hz
Power Transfer: Motor Direct Drive
On/Off Switch: Push Button with Safety Key, Paddle Stop
Spindle RPM: Continuously Variable Speed from 150 to 3000 RPM

Swing: 20"
Chuck Style and Shank Capacity: Keyed, 5/8"
Chuck Arbor Taper: MT-2 to JT-3
Spindle Taper: MT-2
Spindle Travel, Maximum: 6"
Spindle Travel Per One Revolution of Handle: 6"
Quill Diameter: 2.6"
Number of Spindle Speeds: Continuously Variable Speed
Maximum No-Load Speed Range: 150 to 3000 RPM
Maximum Spindle to Table Distance: 27.63"
Maximum Spindle to Base Distance: 46.45"
Maximum Chuck to Table Distance: 24"
Minimum Chuck to Table Distance: 1.5"
Maximum Chuck to Base Distance: 42.9"
Work Lamp: Integrated LED
Depth Stop Type: 6" Mechanical Hard Stop

Head: Cast Iron
Table: Precision-Ground Cast Iron
Table: Insert MDF
Column: Steel
Base: Cast Iron

Table Size: 20.24"L x 13.94"W
Table Slots (4): 3-1/8"L x 5/8"W
Table T-Slots (2): 3/8"W x 5/8"D
Distance Between T-Slots (centers): 8-7/16"
Table Tilt: 90° L and R
Table Rotation Around Column: 360°
Table Elevating System: Worm Gear with Rack
Table Insert: 3.74" x 3.74"
Recommended Maximum Weight on Table: 66 lbs.

Base Size: 23.8"L x 15.9"W
Base Working Surface: 11.42"L x 12.6"W
Base Slots (2): 5/8"W x 7-7/8"L
Distance Between Base Slots (centers): 5-5/16"
Column Diameter: 3.35"
Overall Size: 24"L x 25.5"W x 71.5"H
Weight: 218.46 lbs.
