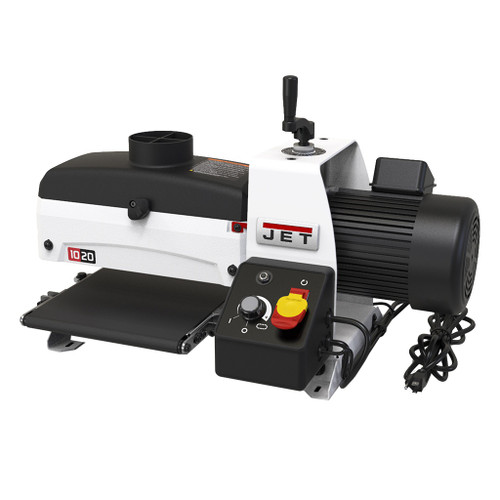

JET 10" Bench Top Drum Sander

SKU: M618501 JWDS-1020
Write a Review
$1,380.00
SKU:
M618501 JWDS-1020
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
396
prop65-text:
true
prop65-text-4:
Lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

The compact JWDS-1020 bench top sander from JET packs a powerful 1 HP motor that will sand boards up to 3"T and 20"W. The innovative patented dust hood ensures dust is funneled to the 4" dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.

  • Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
  • Patented dust hood incorporates an integrated channel that directs dust to a 4" port
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
  • Infinitely VS control allows the user to choose the optimal feed rate
  • Open ended design allows for up to 20" of sanding capacity with 2 passes
  • Extruded aluminum drum is designed to dissipate heat and protect wood from heat damage
  • Redesigned conveyor system pulls the work piece through the sander instead of pushing
  • Toolless abrasive take-up fasteners make changing abrasives quick and easy
  • Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
  • Control system with integrated circuit breaker protects motor from over heating
  • Mfr.'s 3-year warranty

Drum Length: 10"
Number of Sanding Drums: 1
Drum Speed: 1,725 RPM
Drum Diameter: 5"
Conveyor Motor: Totally Enclosed DC
Conveyor Speed: 0 to 10 FPM
Maximum Board Thickness: 3"
Maximum Board Width: 20"
Minimum Board Length: 2-1/4"
Minimum Board Thickness: 1/32"
Dust Collection Minimum CFM Required: 550
Dust Port Outside Diameter: 4"
Motor Power: 1 HP
Motor Phase: 1
Motor Voltage: 115

Includes 80 grit sandpaper.
