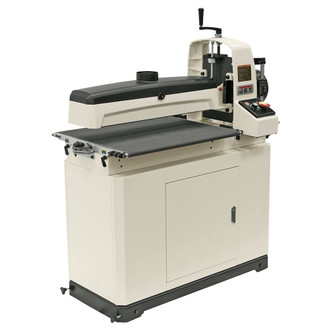

JET 25" Drum Sander With Closed Stand, JWDS-2550

SKU: M618514 723544CSK
Write a Review
$2,800.00
SKU:
M618514 723544CSK
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
397
prop65-text:
true
prop65-text-4:
lead
prop65:

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904 or email us at web@midwesttechnology.com.

The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart™ feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JET JWDS-2550 Drum Sander delivers everything you need for an effortless finish.

  • Sandsmart™ control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
  • Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
  • Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
  • Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4" collection port
  • Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
  • Precision-flattened reinforced steel conveyor bed
  • Redesigned conveyor system pulls the workpiece through the sander instead of pushing
  • One rotation of the top-position handwheel adjusts the drum height by 1/16"
  • The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
  • Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
  • Toolless abrasive take-up clips make changing abrasives quick and easy
  • Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
  • Separate feed and drum motors provide independent control, optimizing the performance of the sander
  • Conveyor belt TRACKERS™ reduce the need for manual belt adjustments
  • Integrated on/off switch and variable speed control knob are conveniently located
  • Stand features a 24" x 50" footprint to increase stability and has a storage shelf and pre-drilled holes for casters
  • Drum is easily removable
  • Drum utilizes sealed and permanently lubricated ball bearings for longer life
  • Dust hose hanger for added ease of use
  • CSA c/us
  • Mfr.'s 5-year warranty

Drum Length: 25"
Drum Speed: 1,720 rpm
Drum Diameter: 5"
Conveyor Motor: 43 in.-lbs. torque, direct drive, dc
Conveyor Speed: 0 - 10 fpm
Maximum Board Thickness: 4"
Maximum Board Width: 50" (two passes)
Minimum Board Length: 2-3/8"
Minimum Board Thickness: 1/32"
Dust Port Outside Diameter: 4"
Motor Power: 1-3/4 HP
Motor Phase: 1
Motor Voltage: 115
Motor Amp: 15
Tool size 45"L x 24W" x 52"H.
Weight 256 lbs. (shipping weight).

Includes closed stand and pre-installed 80 grit abrasive.
