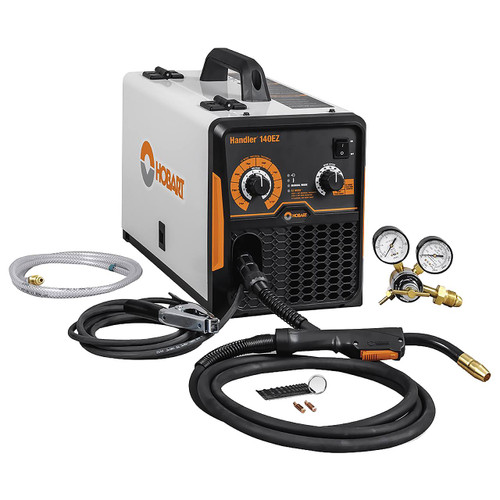

Hobart MIG Handler 140EZ Welder, 115V

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Operates on 120-volt power with a broad output range of 30–140 amps. It welds as thin as 24 gauge and up to 3/16" in a single pass. Weld thicker materials with multiple passes and proper material prep. Infinite voltage control and EZ Mode™ make setup and producing better welds easier on different materials and thicknesses. Fine tune your settings anywhere between 1–10 creating less spatter and cleaner welds with infinite voltage control or quickly change parameters with two turns of a knob with EZ Mode. Spool hub accommodates 4" and 8" spools and wire is fed into a rugged, angled drive assembly for quick and easy setup. Quick Select™ drive rolls offer 3 grooves: 2 for different sizes of solid wire and a third for flux-cored wire.

Industries: Auto Repair, Construction and Fabrication
Weldable Metals: Aluminum, Stainless Steel, Steel
Material Thickness: Mild Steel 24 ga. (0.5 mm) - 1/4" (6.4 mm)
Amperage: 30 A - 140 A
Current Type: DC
Rated Output: 90 A @ 30% duty cycle
Max Open Circuit Voltage: 30 VDC
Wire Feed Speed: 15 IPM - 360 IPM
Wire Diameter: Stainless 0.024" - 0.035", Solid Steel 0.024" - 0.035", Flux Cored 0.03" - 0.035"
Spool Size: 4 or 8"
Portability: Handle
Weld Output: CV
Input Voltage: 110/115/120
Input Phase: 1
Input Hz: 60
Size: 19.6"L x 9.8"W x 14.3"H
Weight: 53 lbs.

Includes
10' HM-100 MIG gun with ergonomic, rubber-padded handle
10' work cable with clamp
Power cord with plug
Built-in gas solenoid valve and dual-gauge regulator with gas hose
030" contact tips
Quick Select™ drive roll for .024"
.030/.035" solid wire, and .030/.035" flux-cored wire
Material thickness gauge
