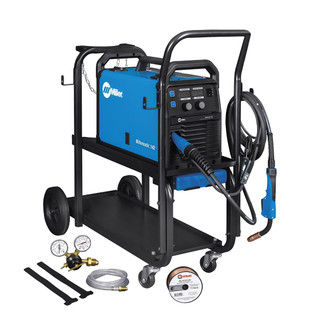

Millermatic 142 MIG Welder with Running Gear, 115V

SKU: M567058 951000072
Write a Review
$1,411.00
SKU:
M567058 951000072

Frequently Bought Together

Please choose options for all selected products

Description

Due to special pricing available exclusively to our school customers, this item is not available for purchase to our non-school customers at the price listed. Every effort will be made to sell this item at the lowest available price to our non-school customers. Please call us at (800) 831-5904.

Auto-Set™ automatically sets your welder to the proper parameters. Simply set the wire diameter and material thickness, and start welding! Segmented display is easy to read. Quick Select™ Drive Roll makes setup quicker by offering 3 grooves: 2 for different size solid wire and 1 for flux-cored wire. Smooth-Start™ technology provides a smooth, spatter-free start. Thermal overload shuts down the unit and activates the over-temperature light if the airflow is blocked or duty cycle is exceeded. Tip Saver shuts down output when the tip is shorted to the work, extending tip life and protecting internal components from damage. Can be used with standard 120V input power and is compatible with generators with 5,000 watt output or higher.

Input Power requires 1-Phase power
120V, 30 Amps, 60 Hz
Material Type: Aluminum 18 ga., 14 ga. Mild Steel 24 ga. - 3/16"
Rated Output: 100 A at 19 V, 60% duty cycle 80 A at 18 V, 100% duty cycle
Welding Amperage Range: 30 - 140 Amps
Wire Speed: 60 - 600 IPM
Max Open Circuit Voltage: 57
Wire Diameter Capacity: .024-.003" Solid Steel, .024-.003" Stainless, .003-.035" Flux Cored
Max Spool Size Capacity: 8"
Unit size: 9.75"W x 20"D x 14.625"H
Weight: 33 lbs.
Total weight: 120 lbs.

Includes
10' MDX™-100 MIG Welding Gun
10' work cable with clamp
6'5" power cord with plug
Argon and AR/CO2 mix flow gauge regulator with gas hose
Hobart® spool of .030" solid wire
2 contact tips for .030" wire
Quick Select drive rolls for .024" or .030"/.035" solid wire, and .030/.035" flux-cored wire
Material thickness gauge
Hook-and-loop cord wraps
Small running gear/cylinder rack
