Fischer Tensile Tester with Hand Pump and Digital Readout

SKU: M558186 MW-TT5-DRO
Write a Review
$7,399.00
SKU:
M558186 MW-TT5-DRO
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
36
Product Type:
Model Building

Frequently Bought Together

Please choose options for all selected products

Description

The Model TT5 is intended for testing of specimens that will require from 300-5,000 lbs. of tensile load to cause fracture. Most spot-welded specimens are in this range. Also, specimens from arc-welded sheet metal can fall in this range. The TT5 is also recommended for schools that are interested in teaching the concept of tensile testing. It is easily portable and moderately priced.

The Model TT5 consists of a load frame and a pumping system. The specimen to be tested is held in the load frame by self-tightening grips. As the load is increased, the grips tighten on the specimen with increasing force. The grips will accept up to 0.15" x 1.13" cross section, but the 5,000 lb. maximum load limits the largest specimen that can be tested (varies according to material strength).

The basic pumping system consists of a hand-operated pump. For most applications, this is the best option. The operator has precise control over the entire operation.

  • Meets ASME, AWS Codes
  • Meets MIL Standards
  • Calibration (ASTM E4) traceable to NIST Standards
  • 5,000 lb. Maximum load +/- 1% Accuracy
  • 300 lb. Minimum load +/- 1% Accuracy
  • Integral hydraulic system
  • Grips specimens up to 0.15" x 1.13" cross section

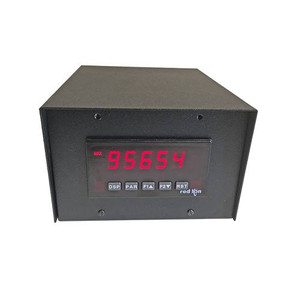

Digital Readout gives the most accurate means for determining the breaking load. The electronic measuring system is comprised of a microprocessor-controlled readout and a precision pressure transducer. The system is programmed at the factory, during calibration, to give a linear load reading from 300 to 5,000 pounds. During subsequent calibrations the user can adjust the system using an IBM-compatible computer, a calibrated load cell and software we can provide. The accuracy of the system is better than +/- 1%. Digital readout of live and peak loads as well as auto zero are standard functions.

Tester: 31"H x 7"W x 4"D
Pump 6"H x 4"W x 14"D
Weight 34 lbs.

Includes hand-operated pump and digital readout.
