DOBOT Magician Conveyor Belt Kit

Description

The Conveyor Kit for Dobot Magician makes you have a complete production line simulation. Conveyor belt with adjustable speed, distance and color sensor, combined with the powerful and programmable Dobot Magician, these are the ideal essentials for you to create a highly effective simulated production line, or even to apply to actual factory scenes.

• Conveyor belt – Mini conveyor belt is a great component for building an automation process with you robot.
• Photoelectric switch – Detect whether there are objects in front of the photoelectric switch.
• Color sensor – An easy-to-use color sensor for you to categorize red, blue, and green objects.
• Wood blocks – These colorful wooden cubes are easy to grab, move, and pile, the ideal material for you to get a grip on the automation process.

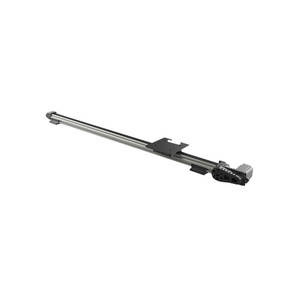

Conveyor Belt
Payload: 500 g
Effective delivering distance: 600 mm
Maximum speed: 120 mm/s
Maximum acceleration: 1100 mm/s²
Net Weight: 9.2 lbs (4.2 kg)
Dimensions: 700 mm x 215 mm x 60 mm

Distance Measuring Sensor Unit
Measurable range: 20 ~ 150 mm
Signal: Analog Output
Input: 4.5 - 5.5 V

Color Recognizing Sensor Unit
Input: 20 ~ 150 mm
Detectable: non-glowing object
White LED embedded : on/off controllable

Includes mini conveyor belt, infrared distance sensor, color sensor, toolkit and instructions.

Dobot Magician sold separately.
