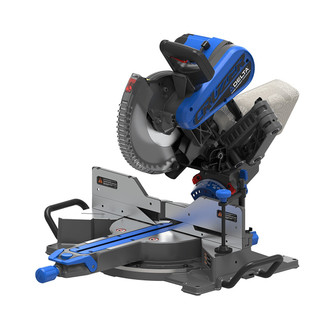

Delta Cruzer Sliding Miter Saw, Dual Bevel, 10"

Description

Uses military-grade aluminum frame members with heavy duty bearing for smooth cutting operation and extremely long life. The space saving design is easy to transport and store.

• 16" crosscut capacity
• Shadow Guide projects a consistent and accurate cutting line
• Dual bevel 45° left and right with 7 positive bevel stops at the most popular angles
• 50° left miter and 60° right miter capacity with 10 miter detents and positive stops
• Front located bevel lever allows easy adjustments
• Molded handle and full size trigger is comfortable for right or left handed users
• 15 amp motor for powerful cutting and a blade brake for safety
• 1-1/2" dust port for vacuum connection and excellent dust collection
• Mfr.'s 5-year warranty

Motor: 15 amp, 120V
Speed: 4,000 RPM
Blade Size: 10"
Arbor: 5/8"
Max. Cut Thickness: 5.5"
Cord Length: 7'
Max. Miter Cut Left: 50°
Max. Miter Cut Right: 60°
Maximum: 1.5" x 15.25" (2 x 16 lumber)
Miter 0° / Bevel 0°: 3.5" x 11.25" (4 x 12 lumber)
Miter 0° / Bevel 45°: 1.5" x 11.25" (2 x 12 lumber)
Miter 45° / Bevel 0°: 3.5" x 7.25" (4 x 8 lumber)
Miter 45° / Bevel 45°: 1.5" x 7.25" (2 x 8 lumber)
Baseboard (Vertical): 5.5"
Crown (Nested): 6.25"
Overall size: 29.5" x 20" x 22.5"
Weight: 55 lbs.

Includes
work clamp
dust bag
2 support extensions
2 extension clamps
2-1/2" dust port
