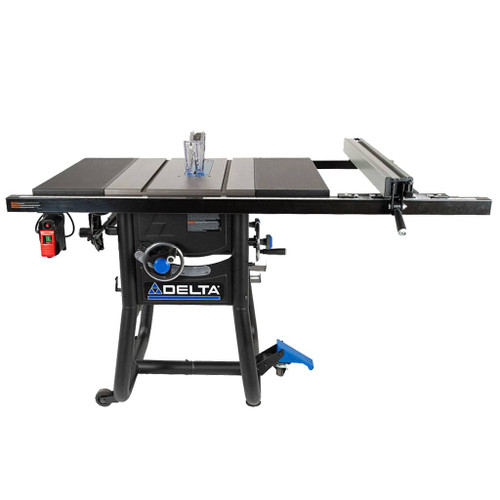

Delta 10" Contractor Table Saw, 30" Fence

SKU: M738908 36-5000T2
Write a Review
$1,831.00
SKU:
M738908 36-5000T2
Availability:
Ships direct from manufacturer. Lead times may vary.
View-Catalog-Page:
379

Frequently Bought Together

Please choose options for all selected products

Description

Powered by a 15 amp induction motor; this saw is designed for precision, durability, stability, and mobility. This is a BELT DRIVEN machine that offers low vibration and easy tensioning. Cut after cut, this saw is designed for the demands of the professional user and serious craftsman.

  • Powerful Contractor Grade motor easily handles hardwoods
  • 30" Rip Capacity handles large stock
  • Smooth and dependable adjustable belt drive table saw
  • Cast iron table top with 2 stamped steel extension wings
  • Legendary Biesemeyer style fence system allows for precision cuts every time and has a special design allowing you to cut small pieces of stock
  • Stacked dado capacity
  • Unique tubular stand with two fixed wheels and one swivel wheel makes the saw very stable and easy to move

Depth of Cut at 90°: 3-1/8" (79.36 mm)
Depth of Cut at 45°: 2-1/4" (57.2 mm)
Rip Right of Blade: 30" (762 mm)
Rip Left of Blade: 15" (381 mm)
Motor: 15 Amp Induction Motor, 1 PH, 60 Hz
RPM: 3,450 RPM
Arbor: 5/8" (15.88 mm)
Blade Tilt: 45° Left
Dado Capacity: 13-16" (20.64 mm) x 8" (203 mm) stacked dado
Dust Port Size: Fit 2.5" (63.5 mm) Hose (With 4" (102 mm) Adapter)
Table Size: 20.24" x 1.57" x 27.05" (514 mm x 39.88 mm x 687 mm)
Length: 62.44" (1,585.98 mm)
Depth: 40" (1016 mm)
Height: 42.91" (1,089.91 mm)
Weight: 195 lbs. Net (88.45 kg)

Includes T-square fence system, miter gauge, blade, extension wings and stand.
